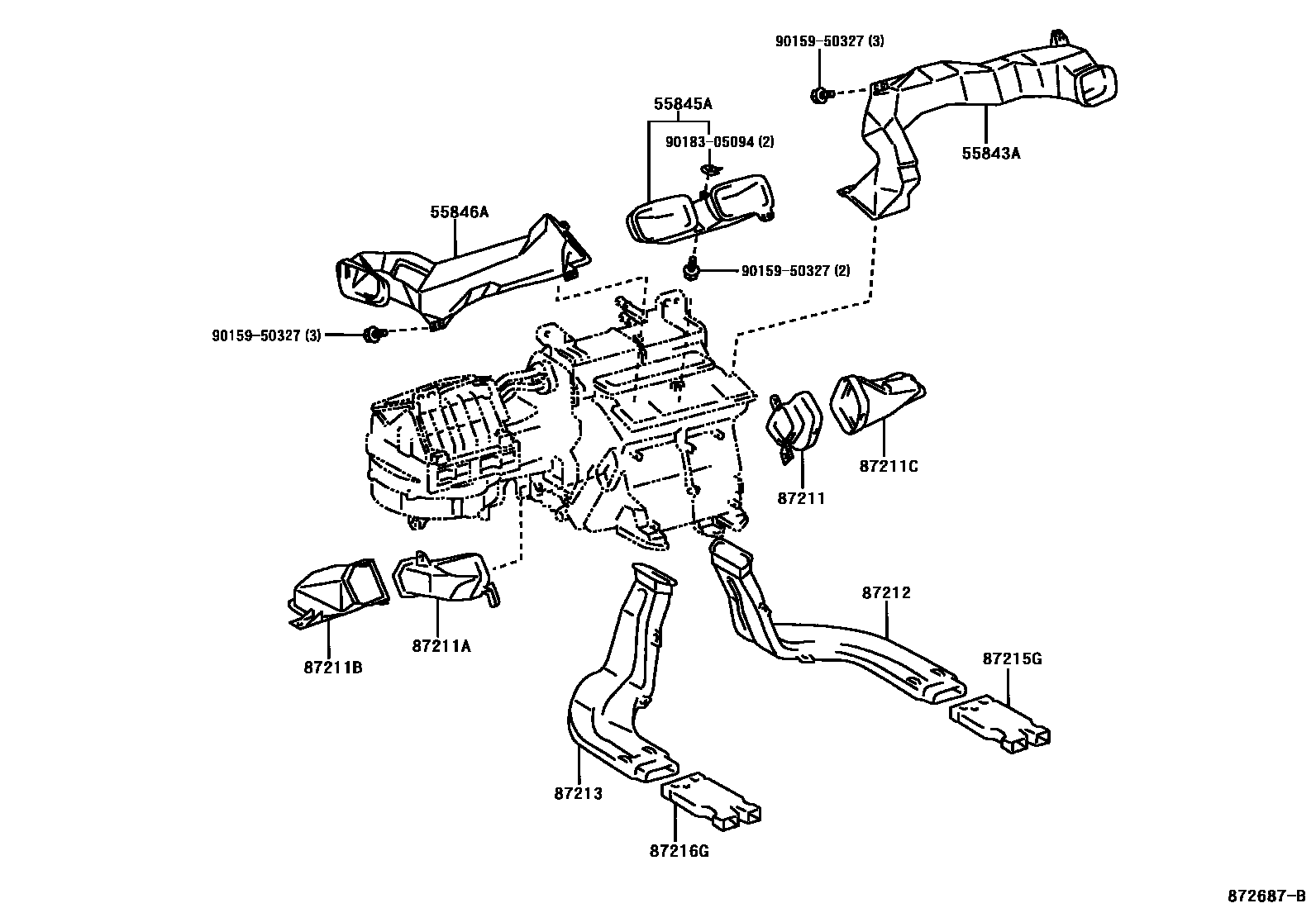

Toyota PROGRES — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55843ADUCT, HEATER TO REGISTER, NO.1
55845ADUCT, HEATER TO REGISTER, NO.3
55846ADUCT, HEATER TO REGISTER, NO.4
87211DUCT, AIR, NO.1
87211ADUCT, AIR, NO.2
87211BDUCT, AIR, NO.3
87211CDUCT, AIR, NO.4
87213DUCT, AIR, REAR NO.2
87215GGUIDE, AIR DUCT, REAR RH
87216GGUIDE, AIR DUCT, REAR LH
9015950327
main90159-50327
9018305094
main90183-05094
13 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - CONTROL & AIR DUCT for Toyota PROGRES
This section contains 17 genuine Toyota parts for the HEATING & AIR CONDITIONING - CONTROL & AIR DUCT system of the Toyota PROGRES. Key components include: DUCT, HEATER TO REGISTER, NO.1, DUCT, HEATER TO REGISTER, NO.3, DUCT, HEATER TO REGISTER, NO.4, DUCT, AIR, NO.1, DUCT, AIR, NO.2.
