Toyota PROGRES — FRONT DOOR LOCK & HANDLE

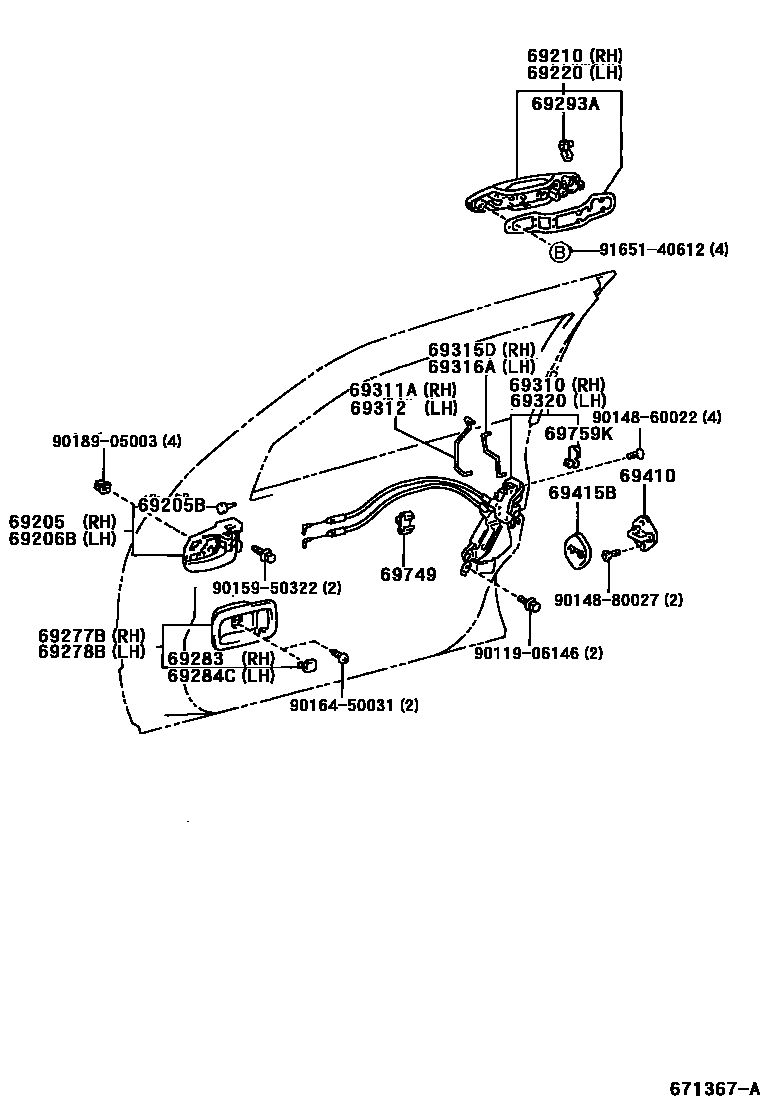

Parts diagram
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-51010-A0i199805-200104
IVORY,TRIM00,01
main69205-51010-C0i199805-200104
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014×2i199805-200104
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-51010-A0i199805-200104
IVORY,TRIM00,01
sub69206-47010
main69206-51010-C0i200104-200706
BLACK,TRIM2#
sub69206-47010
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-51010i200104
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-51010i200104
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-51010-A0i199805-200104
IVORY,TRIM00,01
main69277-51010-C0i199805-200104
BLACK,TRIM2#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-51010-A0i200104-200706
IVORY,TRIM0#
main69278-51010-C0i199805-200104
BLACK,TRIM2#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30040-A1i199805-200104
IVORY,TRIM00,01
main69283-30040-C0i199805-200104
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-30040-A1i200104-200706
IVORY,TRIM0#
main69284-30040-C0i200104-200706
BLACK,TRIM2#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12050i199805-200104
main69293-12060i199805-200104
69310LOCK ASSY, FRONT DOOR, RH
main69030-51010i199805-199808
main69030-51011i199808-200104
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-51010i199805-200104
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-51010i199805-200104
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
main69315-51010i200104
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
main69316-51010i199805-200104
69320LOCK ASSY, FRONT DOOR, LH
main69040-51010i199805-199808
main69040-51011i199808-200104
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-51010×2i199805-200104
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-30020×2i199805-200104
69749CLAMP, FRONT DOOR LOCK LINK
main69749-30050×2i199805-200104
69759KSNAP, DOOR LOCK CONTROL LINK
main69759-32120×2i199805-200104
9011906146
main90119-06146
9014860022
main90148-60022
9014880027
main90148-80027
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9165140612
main91651-40612

27 parts on this diagram · 1 diagram in section
