Toyota PROGRES — FRONT BUMPER & BUMPER STAY

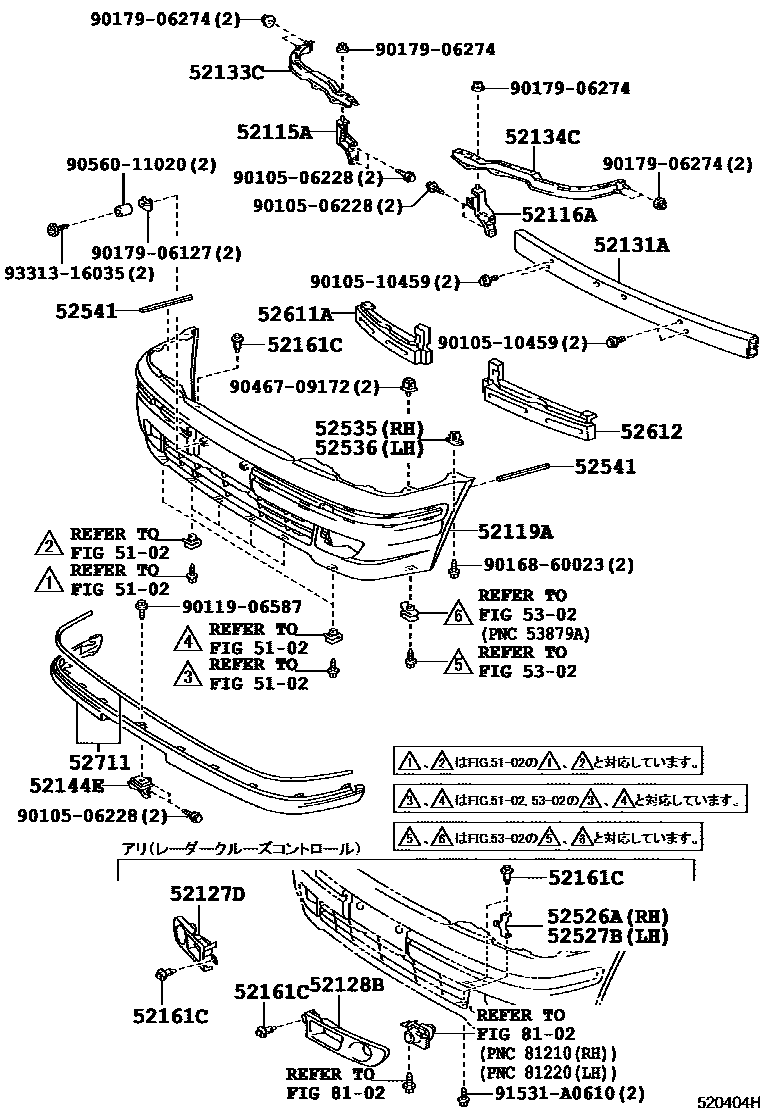

Parts diagram
5102
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52061-51010i199912-200104
main52061-51020i200104-200706
main52115-51010i199805-200104
main52115-51030i200104-200706
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52062-51010i199912-200104
main52062-51020i200104-200706
main52116-51010i199805-200104
main52116-51030i200104-200706
52119ACOVER, FRONT BUMPER
main52119-51010-A0i200104-200706
WHITE PEARL CS.,062
sub52119-51904
sub52119-51906
main52119-51010-B0i200104-200706
SILVER ME.,1C0
sub52119-51904
sub52119-51906
main52119-51010-B1i200212-200706
GRAY ME.,1D2
sub52119-51904
sub52119-51906
main52119-51010-B2i200512-200706
SILVER ME.,1F7
sub52119-51904
sub52119-51906
main52119-51010-D0i199805-200005
RED MC.,3N1
sub52119-51904
sub52119-51906
main52119-51010-D1i199805-199905
DK.RED MC.,3N4
sub52119-51904
sub52119-51906
main52119-51010-D2i200104-200706
BORDEAUX MC.,3P2
sub52119-51904
sub52119-51906
main52119-51010-F0i199805-200104
YELLOW PM.,579
sub52119-51904
sub52119-51906
main52119-51010-F1i200104-200706
GOLD ME.,585
sub52119-51904
sub52119-51906
main52119-51010-G0i199805-200005
DK.GREEN MC.P.I.O.,6N9
sub52119-51904
sub52119-51906
main52119-51010-G1i200104-200706
GREEN M.M.,6R2
sub52119-51904
sub52119-51906
main52119-51010-G2i200005-200104
BLACKISH GREEN MC.CC,6R5
sub52119-51904
sub52119-51906
main52119-51010-G3i200212-200706
LT.GREEN M.M.,6S8
sub52119-51904
sub52119-51906
main52119-51010-G4i200512-200706
OLIVE M.M.,6T7
sub52119-51904
sub52119-51906
main52119-51010-J0i199805-200104
BLUE MC.,8M6
sub52119-51904
sub52119-51906
main52119-51010-J1i200104-200706
BLUE ME.,8N0
sub52119-51904
sub52119-51906
main52119-51010-J2i200104-200706
DARK BLUE MC.,8P8
sub52119-51904
sub52119-51906
main52119-51010-J3i200512-200706
DK.BLUE MC.,8S6
sub52119-51904
sub52119-51906
main52119-51020-A0i200104-200511
sub52119-51905
main52119-51020-B0i200512-200706
sub52119-51905
main52119-51020-B1i200512-200706
sub52119-51905
main52119-51020-B2i200512-200706
sub52119-51905
main52119-51020-D0i199805-200005
sub52119-51905
main52119-51020-D1i199805-199905
sub52119-51905
main52119-51020-D2i200005-200104
sub52119-51905
main52119-51020-F0i199805-200104
sub52119-51905
main52119-51020-F1i200104-200212
sub52119-51905
main52119-51020-G0i199805-200005
sub52119-51905
main52119-51020-G1i200104-200212
sub52119-51905
main52119-51020-G2i200005-200104
sub52119-51905
main52119-51020-G3i200104-200511
sub52119-51905
main52119-51020-G4i200512-200706
sub52119-51905
main52119-51020-J0i199805-200104
sub52119-51905
main52119-51020-J1i200512-200706
sub52119-51905
main52119-51020-J2i200104-200511
sub52119-51905
main52119-51020-J3i200512-200706
sub52119-51905
52127DCOVER, FRONT BUMPER HOLE, RH
main52127-51010-B0i199805-200104
SILVER ME.,1C0
main52127-51010-D0i199805-200005
RED MC.,3N1
main52127-51010-D1i199805-199905
DK.RED MC.,3N4
main52127-51010-D2i200005-200104
BORDEAUX MC.,3P2
main52127-51010-F0i199805-200104
YELLOW PM.,579
main52127-51010-G0i199805-200005
DK.GREEN MC.P.I.O.,6N9
main52127-51010-G1i199805-200104
GREEN M.M.,6R2
main52127-51010-G2i200005-200104
BLACKISH GREEN MC.CC,6R5
main52127-51010-J0i199805-200104
BLUE MC.,8M6
main52127-51010-J1i199805-200104
BLUE ME.,8N0
main52127-51030-A0i200104-200706
WHITE PEARL C.S.,062
sub52127-51900
main52127-51030-B0i200104-200706
SILVER ME.,1C0
sub52127-51900
main52127-51030-B1i200212-200706
GRAY ME.,1D2
sub52127-51900
main52127-51030-B2i200512-200706
SILVER ME.,1F7
sub52127-51900
main52127-51030-D0i200104-200706
BORDEAUX ME.,3P2
sub52127-51900
main52127-51030-F0i200104-200706
GOLD ME.,585
sub52127-51900
main52127-51030-G0i200104-200706
GREEN M.M.,6R2
sub52127-51900
main52127-51030-G1i200104-200706
BLACKISH GREEN MC.CC,6R5
sub52127-51900
main52127-51030-G2i200212-200706
LT.GREEN M.M.,6S8
sub52127-51900
main52127-51030-G3i200512-200706
OLIVE M.M.,6T7
sub52127-51900
main52127-51030-J0i200104-200706
BLUE MC.,8M6
sub52127-51900
main52127-51030-J1i200104-200706
BLUE ME.,8N0
sub52127-51900
main52127-51030-J2i200104-200706
DARK BLUE MC.,8P8
sub52127-51900
main52127-51030-J3i200512-200706
DK.BLUE MC.,8S6
sub52127-51900
52128BCOVER, FRONT BUMPER HOLE, LH
main52128-51010-A0i200104-200511
WHITE PEARL CS.,062
sub52128-51900
main52128-51010-B0i200104-200511
SILVER ME.,1C0
sub52128-51900
main52128-51010-B1i200512-200706
GRAY ME.,1D2
sub52128-51900
main52128-51010-B2i200512-200706
SILVER ME.,1F7
sub52128-51900
main52128-51010-D0i199805-200005
RED MC.,3N1
sub52128-51900
main52128-51010-D1i199805-199905
DK.RED MC.,3N4
sub52128-51900
main52128-51010-D2i200512-200706
BORDEAUX MC.,3P2
sub52128-51900
main52128-51010-F0i199805-200104
YELLOW PM.,579
sub52128-51900
main52128-51010-F1i200104-200212
GOLD ME.,585
sub52128-51900
main52128-51010-G0i199805-200005
DK.GREEN MC.P.I.O.,6N9
sub52128-51900
main52128-51010-G1i200104-200212
GREEN M.M.,6R2
sub52128-51900
main52128-51010-G2i200104-200511
BLACKISH GREEN MC.CC,6R5
sub52128-51900
main52128-51010-G3i200512-200706
LT.GREEN M.M.,6S8
sub52128-51900
main52128-51010-G4i200512-200706
OLIVE M.M.,6T7
sub52128-51900
main52128-51010-J0i200104-200212
BLUE MC.,8M6
sub52128-51900
main52128-51010-J1i200104-200511
BLUE ME.,8N0
sub52128-51900
main52128-51010-J2i200512-200706
DARK BLUE MC.,8P8
sub52128-51900
main52128-51010-J3i200512-200706
DK.BLUE MC.,8S6
sub52128-51900
52131AREINFORCEMENT, FRONT BUMPER
main52131-51010i199805-200104
main52131-51020i200104
52133CREINFORCEMENT, FRONT BUMPER BAR, RH
main52133-51010i200104-200706
52134CREINFORCEMENT, FRONT BUMPER BAR, LH
main52134-51010i199805-200104
52144ESTAY, FRONT BUMPER, CENTER
main52144-51010i199805-200104
52161CPIECE, FRONT BUMPER
main52161-16010×2i199805-200104
52526ARETAINER, FRONT BUMPER, LOWER NO.1
main52526-51010i200104-200511
52527BRETAINER, FRONT BUMPER, LOWER NO.2
main52527-51010i199805-200104
52535RETAINER, FRONT BUMPER SIDE, RH
main52535-30150i199805-200104
52536RETAINER, FRONT BUMPER SIDE, LH
main52535-30150i199805-200104
52541PROTECTOR, FRONT BUMPER
main52541-30090×2i200312
main52541-51010×2i200104-200311
52611AABSORBER, FRONT BUMPER ENERGY, RH
main52611-51010i199805-200104
main52611-51020i200104
52612ABSORBER, FRONT BUMPER ENERGY, LH
main52612-51010i199805-200104
main52612-51020i200104
52711MOULDING, FRONT BUMPER
main52714-51010-B0i199805-200104
SILVER,1C0
main52714-51010-B1i200104-200706
SILVER ME.,062
main52714-51010-B2i200212-200706
DK.GRAY,1D2
main52714-51010-B3i200512-200706
GRAY MM,1F7
main52714-51010-D0i199805-199905
DK.RED,3N4
main52714-51010-D1i199805-200005
RED,3N1
main52714-51010-D2i200005-200104
DARK BORDEAUX,3P2
main52714-51010-F0i199805-200104
IVORY,579
main52714-51010-F1i200104-200706
GOLD,585
main52714-51010-G0i199805-200104
GREEN,6R2
main52714-51010-G2i199805-200005
DK.GREEN MC.P.I.O.,6N9
main52714-51010-G3i200005-200104
BLACKISH GREEN MC.CC,6R5
main52714-51010-G4i200212-200706
MD.GREEN,6S8
main52714-51010-G5i200512-200706
OLIVE M.M.,6T7
main52714-51010-J0i199805-200104
BLUE,8M6
main52714-51010-J1i200104-200706
LT.BLUE,8N0
main52714-51010-J2i200104-200706
DARK BLUE MC.,8P8
main52714-51010-J3i200512-200706
DK.BLUE MC.,8S6
5302
8102
9010506228
main90105-06228
9010510459
main90105-10459
9011906587
main90119-06587
9016860023
main90168-60023
9017906127
main90179-06127
9017906274
main90179-06274
9046709172
main90467-09172
9056011020
main90560-11020
91531A0610
main91531-A0610
9331316035
main93313-16035

31 parts on this diagram · 2 diagrams in section
