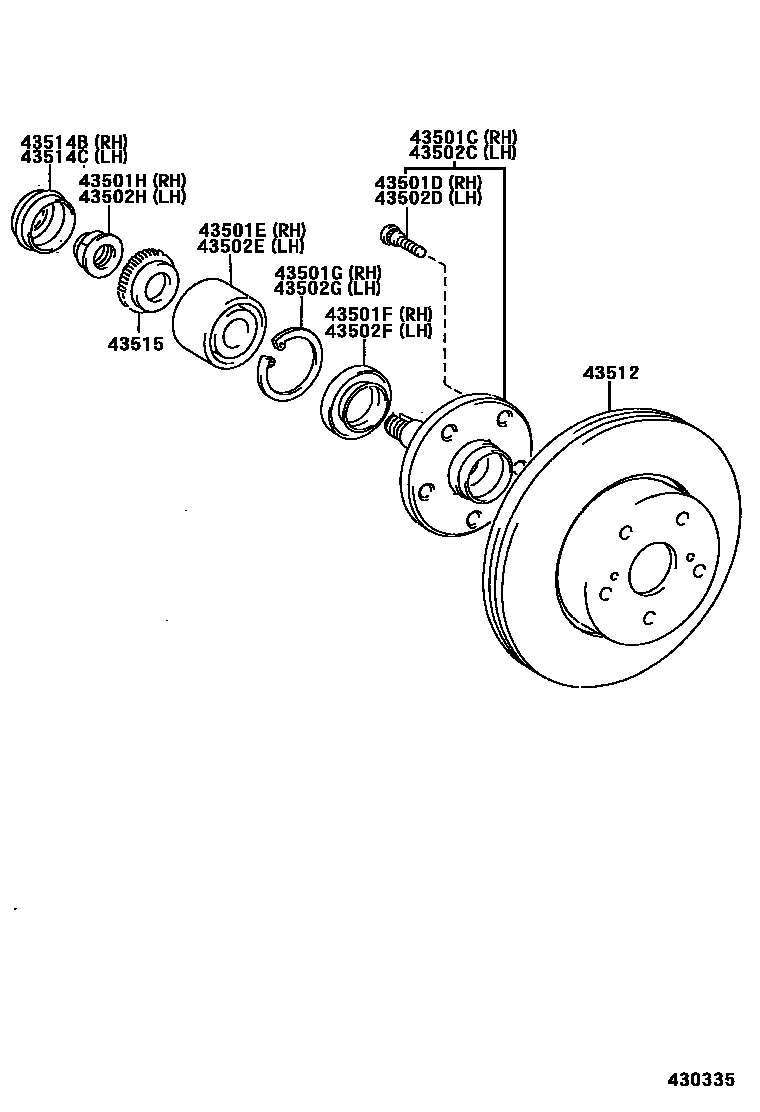

Toyota PROGRES — FRONT AXLE HUB

0001 1 0002 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-22080iJCG10,11200104

main43502-30150iJCG15200104

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iJCG1#199805-200104

sub90942-02049

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-32035iJCG10,11199805-200104

main90369-43008iJCG15199912-200104

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-48013iJCG10,11199805-200104

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iJCG10,11199805-200104

main90521-88001iJCG15199912-200104

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-22020iJCG15200104

main90179-22022iJCG10,11199805-200104

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-22080iJCG10,11199805-200104

main43502-30150iJCG15199912-200104

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iJCG1#199805-200104

sub90942-02049

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-32035iJCG10,11199805-200104

main90369-43008iJCG15199912-200104

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-48013iJCG10,11200104

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iJCG10,11199805-200104

main90521-88001iJCG15199912-200104

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-22020iJCG15199912-200104

main90179-22022iJCG10,11200104

43512DISC, FRONT

main43512-22220×2iJCG1#199805-200104

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-22040iJCG10,11199805-200104

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-22040iJCG10,11199805-200104

43515ROTOR, SKID CONTROL, FRONT

main43515-22030×2iJCG10,11199805-200104

16 parts on this diagram · 2 diagrams in section
