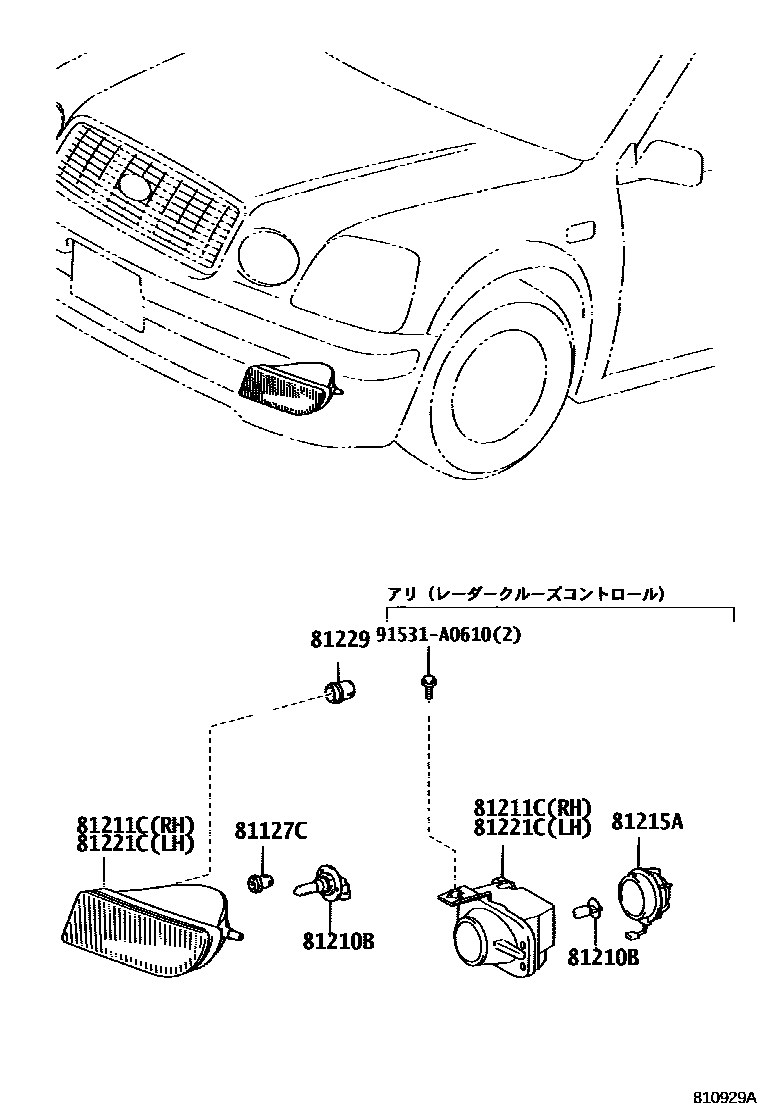

Toyota PROGRES — FOG LAMP

0001 1 0002 1

81127CBEARING FOG LAMP

main90075-10811×2iJCG1#199805-200104

81210BBULB, FOG LAMP

main90080-81040×2iJCG1#199805-200104

main90981-13047×2iJCG1#200104-200706

main90981-13048×2iJCG10,11200104-200511

81211CLAMP UNIT, FOG LAMP, RH

main81211-51010iJCG1#199805-200104

main81211-51020iJCG10,11199805-200104

main81211-51021iJCG10,11200512-200706

main81211-51040iJCG1#200104-200706

81215ASOCKET & WIRE, FOG LAMP

main81215-33010×2iJCG10,11199805-200104

81221CLAMP UNIT, FOG LAMP, LH

main81221-51010iJCG1#199805-200104

main81221-51020iJCG10,11200104-200511

main81221-51021iJCG10,11200512-200706

main81221-51040iJCG1#200104-200706

81229BRACKET, FOG LAMP

main81481-10030×2iJCG1#199805-200005

main81481-28040×2iJCG1#200005-200104

91531A0610

main91531-A0610

7 parts on this diagram · 2 diagrams in section
