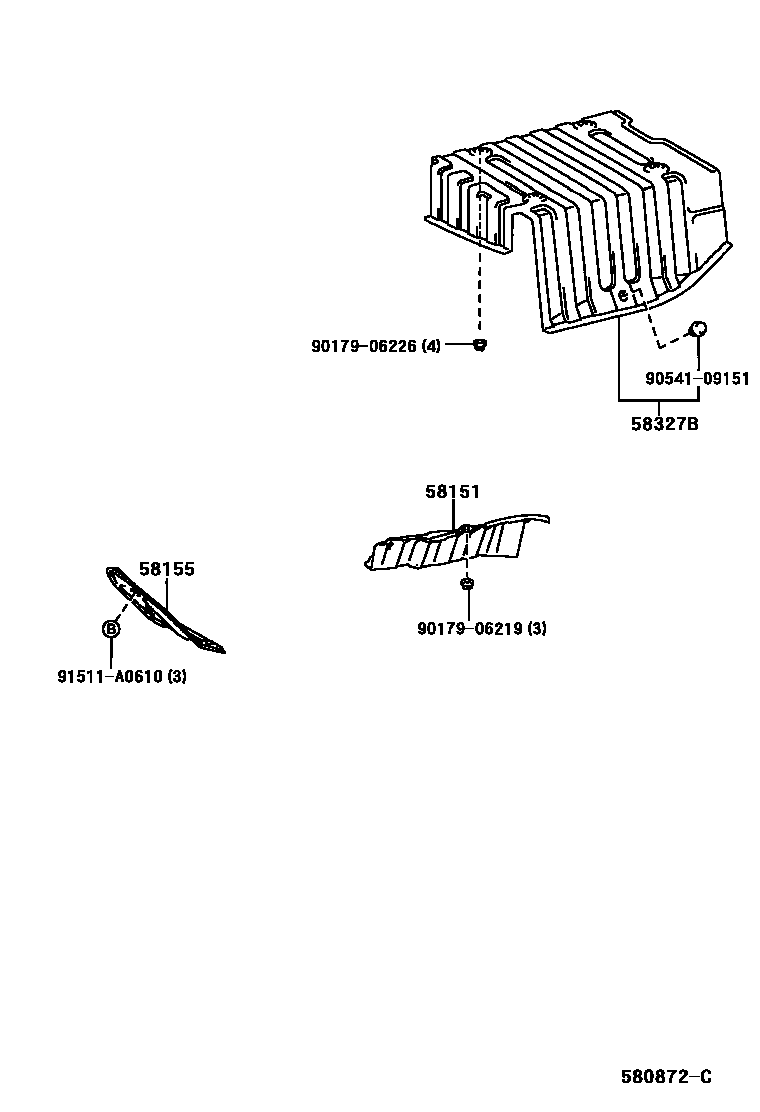

Toyota PROGRES — FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30090iJCG10,11200104

main58151-30100iJCG15199912-200104

main58151-51010iJCG10,11199805-200104

main58151-51020iJCG15200104

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-51010iJCG1#199805-200104

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-51010iJCG1#199805-200104

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

91511A0610

main91511-A0610

7 parts on this diagram · 2 diagrams in section
