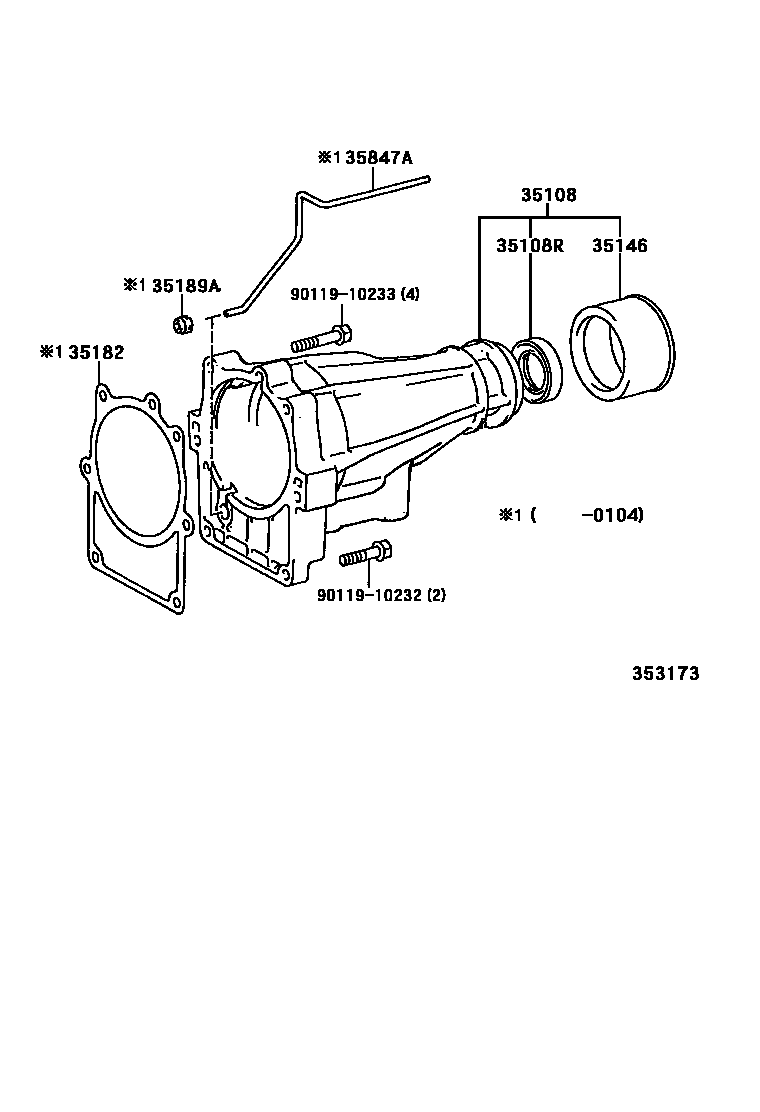

Toyota PROGRES — EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30190iJCG10,11199805-200104

main35180-30040iJCG10,11200104

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iJCG10,11199805-200104

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30020iJCG10,11199805-200104

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iJCG10,11199805-200104

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iJCG10,11199805-200104

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iJCG10,11199805-200104

9011910232

main90119-10232

9011910233

main90119-10233

8 parts on this diagram · 1 diagram in section
