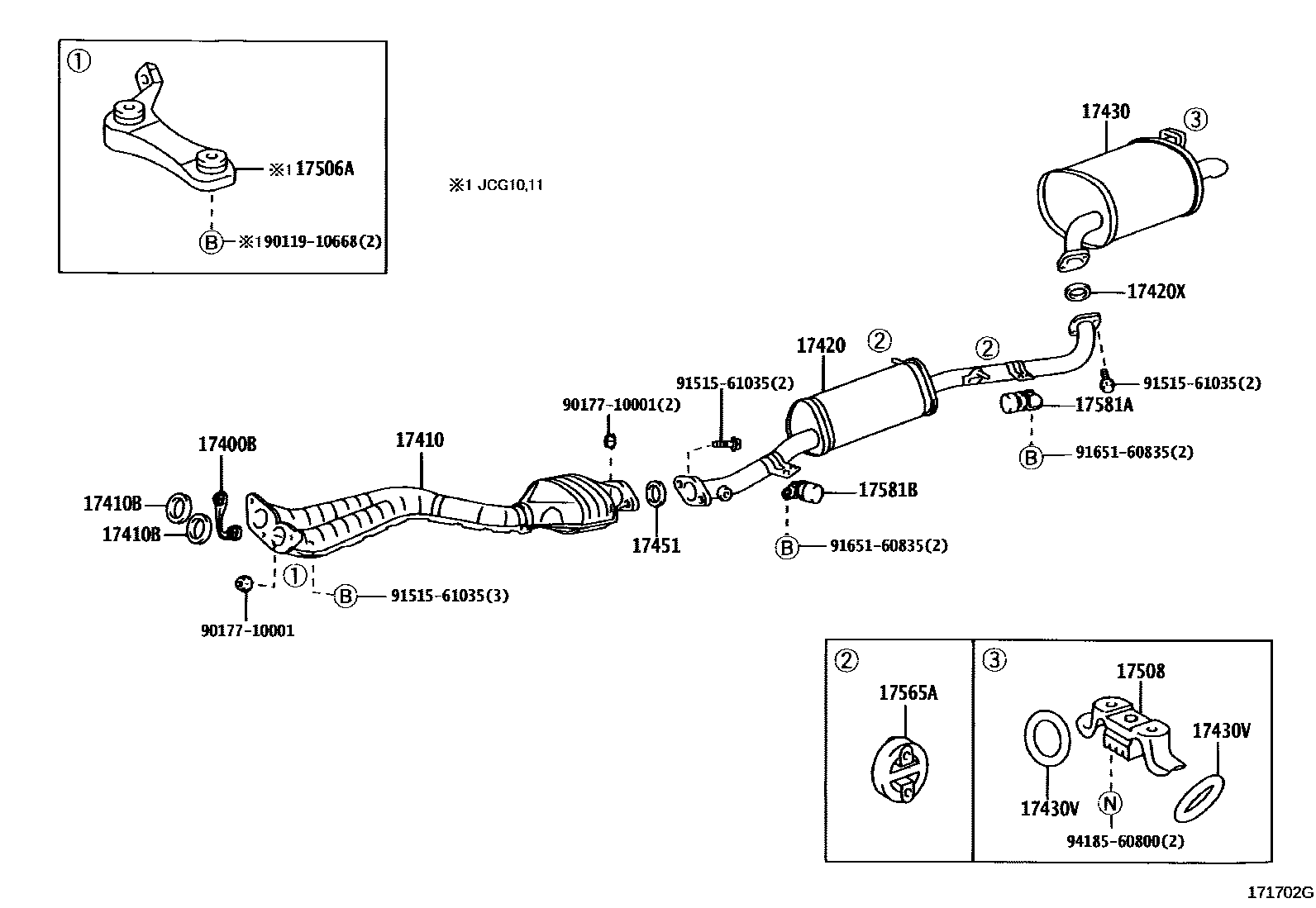

Toyota PROGRES — EXHAUST PIPE
17400BRETAINER, EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17581ADAMPER, EXHAUST PIPE
17581BDAMPER, EXHAUST PIPE, NO.2
9011910668
main90119-10668
9017710001
main90177-10001
9151561035
main91515-61035
9165160835
main91651-60835
9418560800
main94185-60800
18 parts on this diagram · 3 diagrams in section
