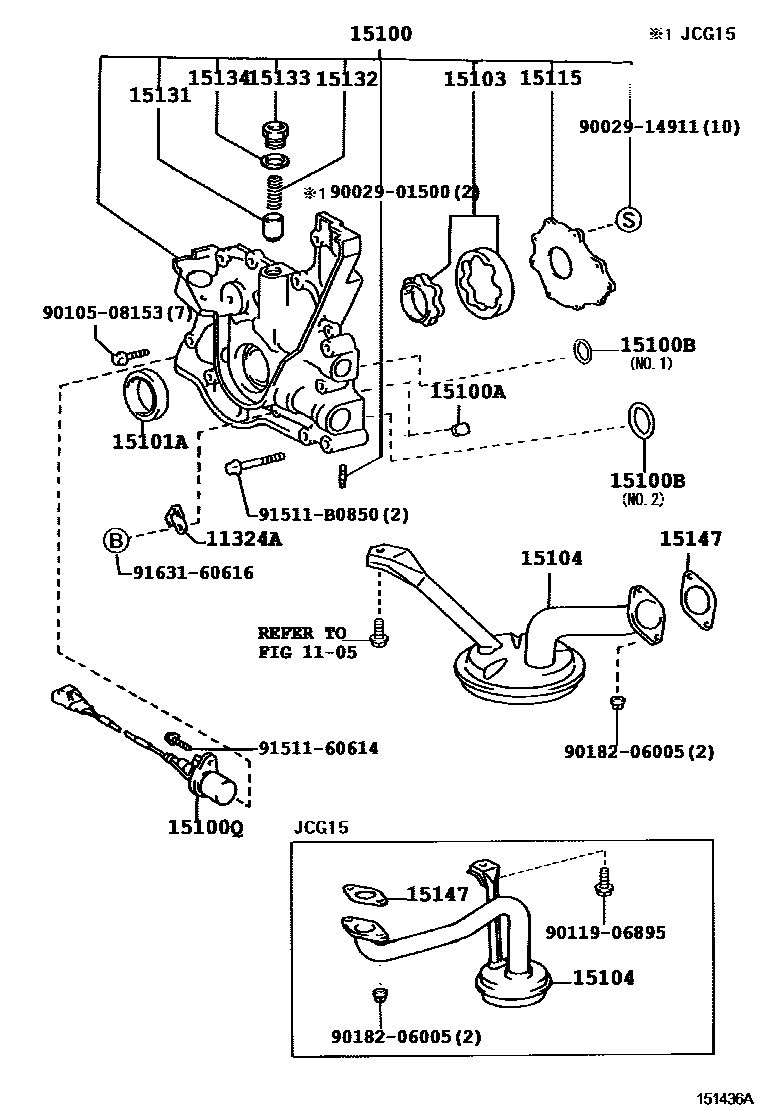

Toyota PROGRES — ENGINE OIL PUMP

0001 1 0002 1

1105

11324APLATE, TIMING BELT

main11324-46030i1JZFSE,2JZFSE..JCG1#200104

15100PUMP ASSY, OIL

main15100-46090i1JZGE,2JZGE..JCG10,11199805-200104

sub15100-46091

main15100-46100i1JZGE..JCG15199912-200104

main15100-46111i1JZFSE,2JZFSE..JCG10,11200104

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i1JZFSE,2JZFSE..JCG1#200104

15100BRING, O(FOR OIL PUMP)

main96721-24022i1JZGE,2JZGE..JCG1#199805-200104

main96721-24031i1JZGE,2JZGE..JCG1#199805-200104

15100QSENSOR, CRANK POSITION

main90919-05023i1JZGE,2JZGE..JCG1#199805-200104

15101ASEAL(FOR CRANKSHAFT)

main90311-46001i1JZGE,2JZGE..JCG1#199805-200104

15103GEAR SET, OIL PUMP

main15103-46090i1JZGE,2JZGE..JCG1#199805-200104

15104STRAINER SUB-ASSY, OIL

main15104-46051i1JZGE..JCG15199912-200104

main15104-46070i1JZGE,2JZGE..JCG10,11199805-200104

15115COVER, OIL PUMP

main15115-46090i1JZGE,2JZGE..JCG1#199805-200104

15131VALVE, OIL PUMP RELIEF

main15131-17010i1JZFSE,2JZFSE..JCG10,11200104

main15131-46060i1JZGE,2JZGE..JCG1#199805-200104

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i1JZGE,2JZGE..JCG1#199805-200104

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1JZFSE,2JZFSE..JCG1#200104

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1JZGE,2JZGE..JCG1#199805-200104

15147GASKET, OIL STRAINER

main15147-46010i1JZGE,2JZGE..JCG10,11199805-200104

main15147-46030i1JZGE..JCG15199912-200104

9002901500

main90029-01500

9002914911

main90029-14911

9010508153

main90105-08153

9011906895

main90119-06895

9018206005

main90182-06005

9151160614

main91511-60614

91511B0850

main91511-B0850

9163160616

main91631-60616

23 parts on this diagram · 2 diagrams in section
