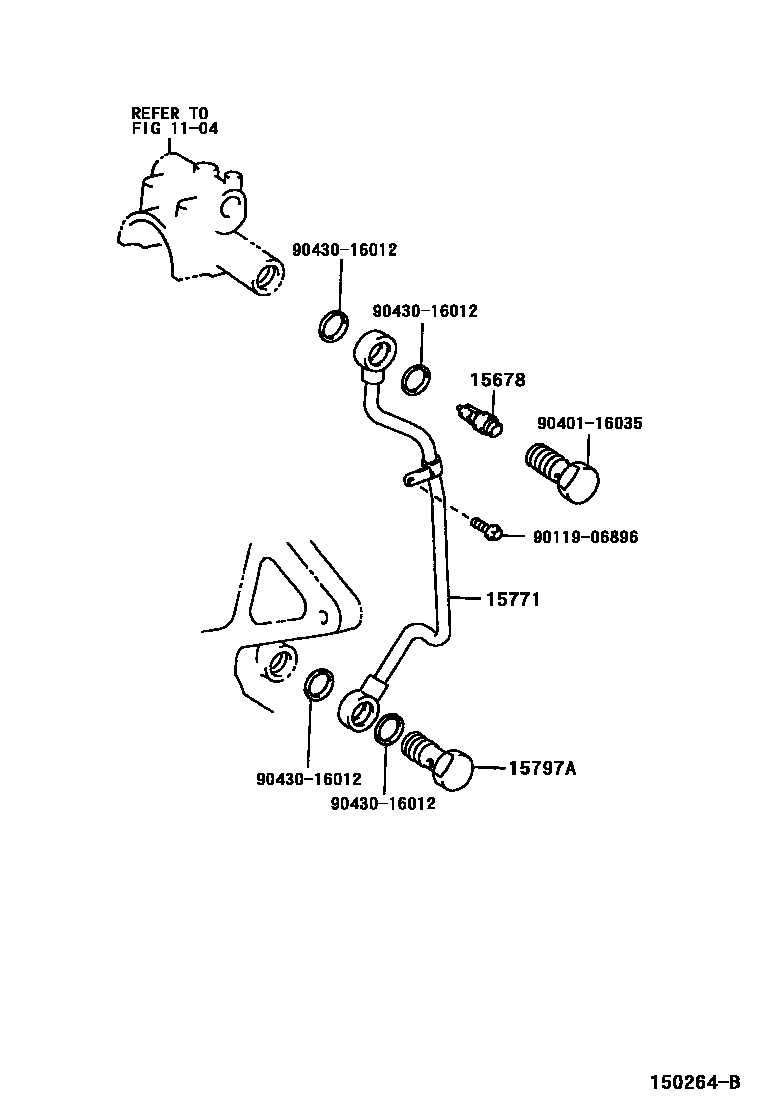

Toyota PROGRES — ENGINE OIL COOLER

0001 1 0002 1 0003 1

1104

15678FILTER, OIL CONTROL VALVE

main15678-46010i1JZGE,2JZGE..JCG1#199805-199907

sub15678-32010

main15678-46020i1JZGE,2JZGE..JCG1#199907-200104

15771PIPE, OIL, NO.1

main15771-46010i2JZGE..JCG11199805-200104

main15771-46020i1JZGE..JCG10,15199805-200104

main15771-46040i2JZFSE..JCG11200104

main15771-46050i1JZFSE..JCG10,15200104

15797ABOLT, OIL CHECK VALVE

main15797-46010i1JZGE,2JZGE..JCG1#199805-200104

9011906896

main90119-06896

9040116035

main90401-16035

9043016012

main90430-16012

7 parts on this diagram · 3 diagrams in section
