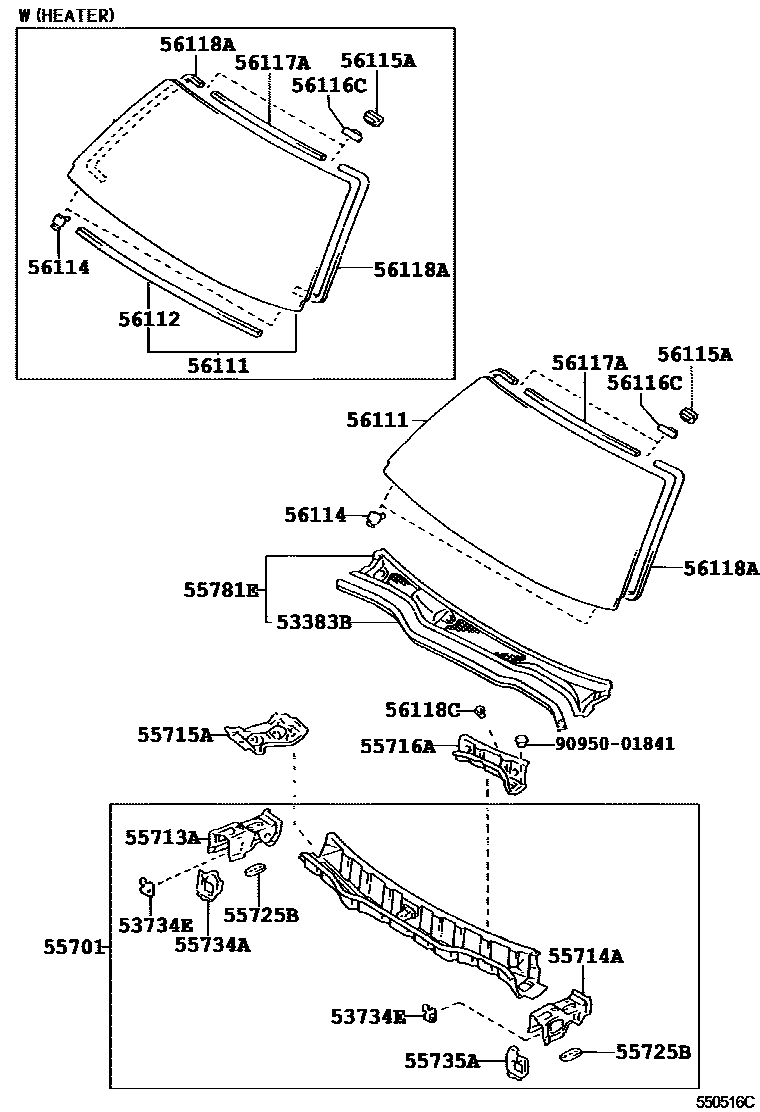

Toyota PROGRES — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-51010iJCG1#200104

53734EPATCH, FRONT FENDER APRON, NO.4

main53734-30060×2iJCG1#199805-200104

55701PANEL SUB-ASSY, COWL

main55700-51010iJCG1#199805-200104

main55700-51020iJCG1#199805-200104

main55700-51050iJCG1#200104-200706

main55700-51060iJCG1#200104-200706

55713APANEL, COWL TOP SIDE, RH

main55713-51010iJCG1#199805-200104

55714APANEL, COWL TOP SIDE, LH

main55714-51010iJCG1#199805-200104

55715ABRACE, COWL TOP TO APRON, RH

main55715-51010iJCG1#199805-200104

55716ABRACE, COWL TOP TO APRON, LH

main55716-51010iJCG1#199805-200104

main55716-51011iJCG1#200106

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010×2iJCG1#199805-200104

55734APLATE, WATER GUARD, RH

main55734-51010iJCG1#199805-200104

55735APLATE, WATER GUARD, LH

main55735-51010iJCG1#199805-200104

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-51010iJCG1#200104-200404

main55708-51011iJCG1#200404

main55708-51020iJCG1#199805-200104

main55708-51021iJCG1#200404

56111GLASS, WINDSHIELD

main56101-51010iJCG1#200104-200706

main56111-51010iJCG1#199805-200104

56112DAM, WINDOW GLASS ADHESIVE, NO.2

main56118-51010iJCG1#199805-200104

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2iJCG1#199805-200104

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iJCG1#200104

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iJCG1#199805-200104

56117ADAM, WINDOW GLASS ADHESIVE

main56118-51010iJCG1#200104

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-44030iJCG1#200206

main56118-51010×2iJCG1#200104

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iJCG1#200106

9095001841

main90950-01841

20 parts on this diagram · 1 diagram in section
