Toyota PROGRES — CENTER STOP LAMP

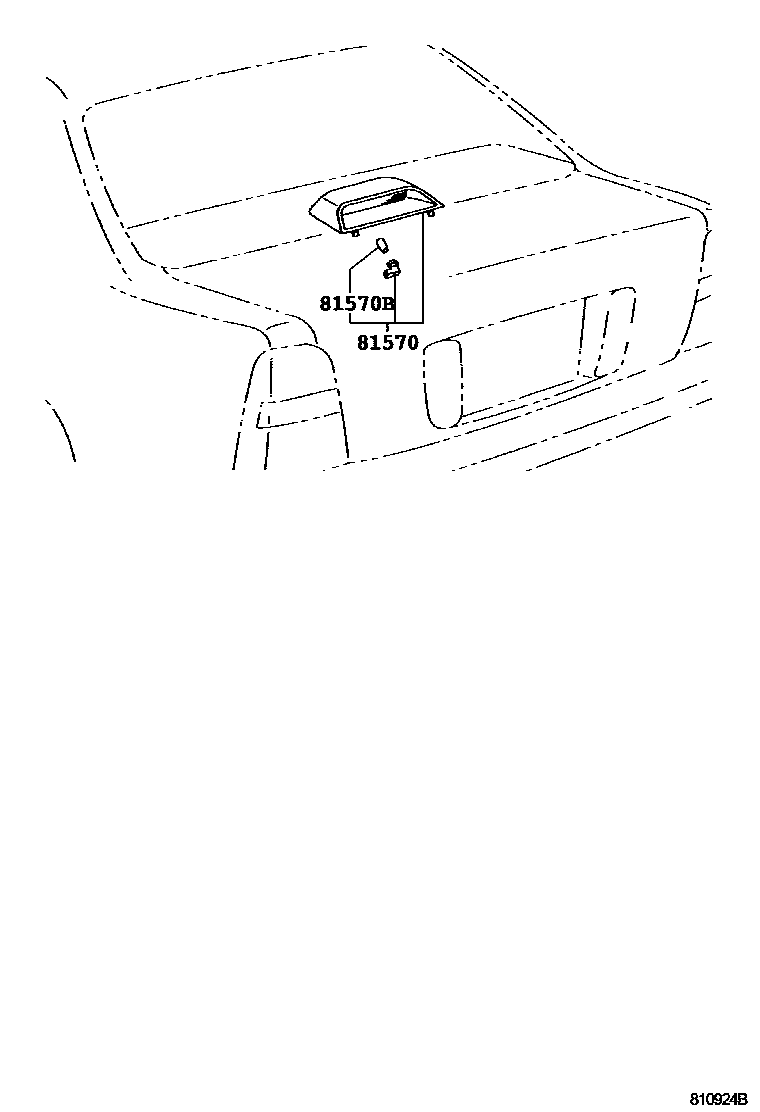

81570LAMP ASSY, CENTER STOP

main81570-22130-A0iJCG1#199805-200104

IVORY,TRIM00

main81570-22130-C0iJCG1#199805-200104

BLACK,TRIM2#

main81570-22130-E1iJCG1#200104-200202

SANDAL WOOD,TRIM0#

main81570-22130-J0iJCG1#199805-199912

DK.BLUE,TRIM0#

main81570-22131-C0iJCG1#200202-200512

BLACK,TRIM2#

main81570-22131-E1iJCG1#200202-200512

SANDAL WOOD,TRIM0#

main81570-51010-C0iJCG10,11199905-200104

main81570-51011-C0iJCG10,15200212-200404

PRIME SELECTION *(P),BLACK,TRIM0#

main81570-51011-E0iJCG10200202-200512

main81570-51060-C0iJCG10,11200512-200706

main81570-51060-E0iJCG10,15200512-200706

main81570-53041-C0iJCG1#200512-200706

BLACK,TRIM2#

main81570-53041-E0iJCG1#200512-200706

SANDAL WOOD,TRIM0#

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059iJCG1#199805-200104

main90981-13043iJCG1#200512-200706

2 parts on this diagram · 1 diagram in section
