Toyota PROGRES — CAMERA & REAR MONITOR DISPLAY

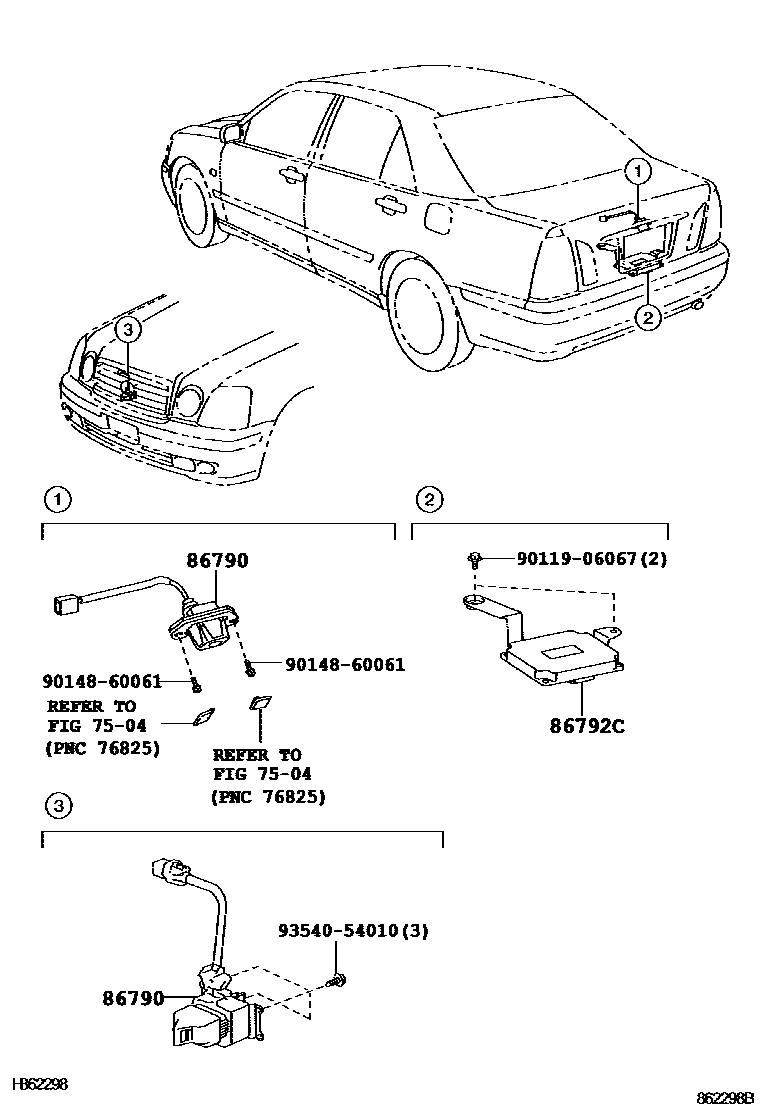

Parts diagram

7504REAR MOULDING

→ Go to FIG 75-04

86790CAMERA ASSY, TELEVISION

main86790-51020i200404

main86790-51030i200404-200602

main86790-51031i200603

86792CCOMPUTER, PARKING ASSIST

main86792-51050i200404

main86792-51060i200404

9011906067

main90119-06067

9014860061

main90148-60061

9354054010

main93540-54010

6 parts on this diagram · 1 diagram in section

CAMERA & REAR MONITOR DISPLAY for Toyota PROGRES

This section contains 6 genuine Toyota parts for the CAMERA & REAR MONITOR DISPLAY system of the Toyota PROGRES. Key components include: REAR MOULDING, CAMERA ASSY, TELEVISION, COMPUTER, PARKING ASSIST.
