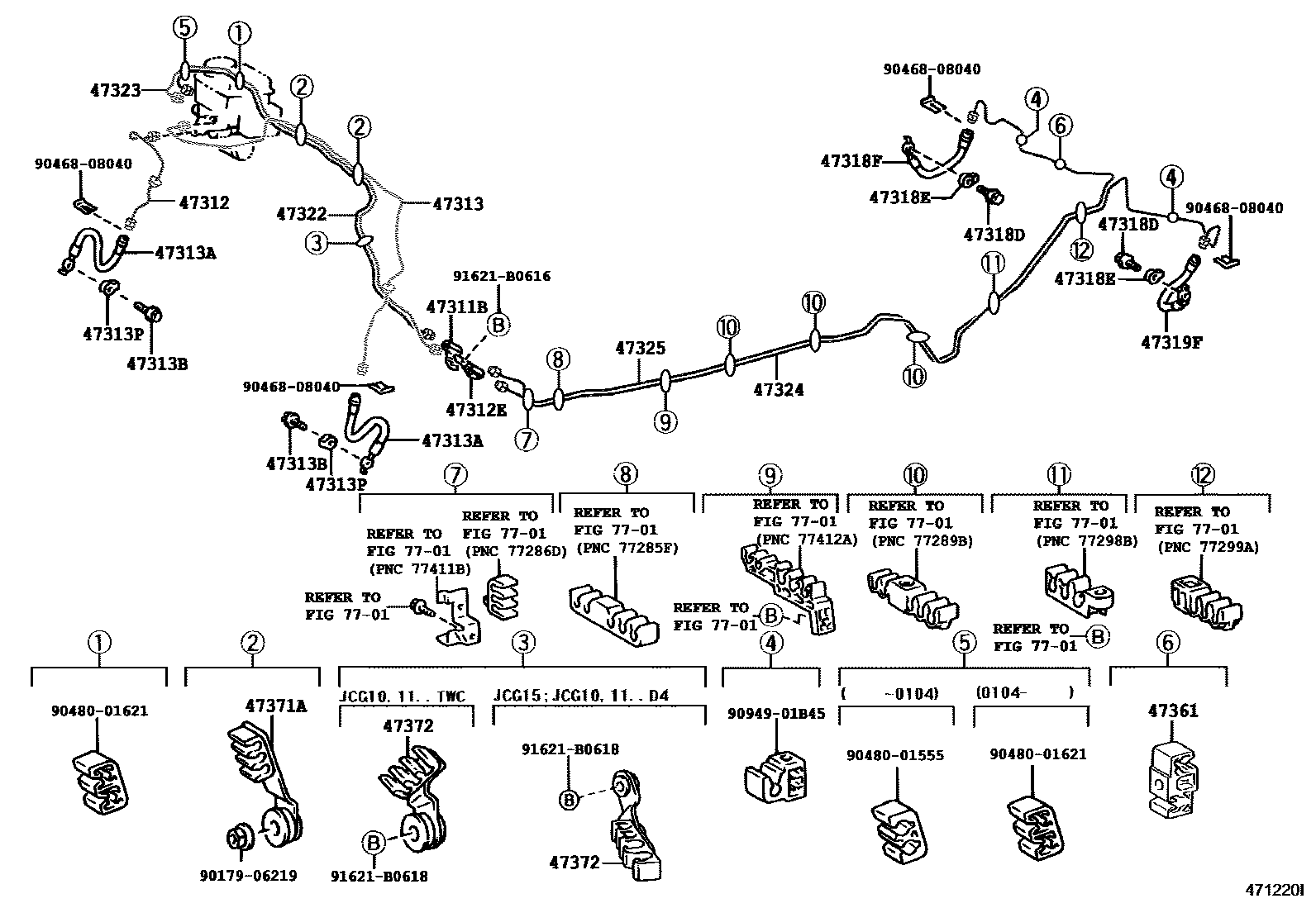

Toyota PROGRES — BRAKE TUBE & CLAMP
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47361CLAMP, TUBE
7701FUEL TANK & TUBE
9017906219
main90179-06219
9046808040
main90468-08040
9048001555
main90480-01555
9048001621
main90480-01621
9094901B45
main90949-01B45
91621B0616
main91621-B0616
91621B0618
main91621-B0618
26 parts on this diagram · 1 diagram in section
BRAKE TUBE & CLAMP for Toyota PROGRES
This section contains 26 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota PROGRES. Key components include: WAY, NO.1(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2, WAY, NO.2(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.3, HOSE, FLEXIBLE, NO.1(FOR FRONT).
