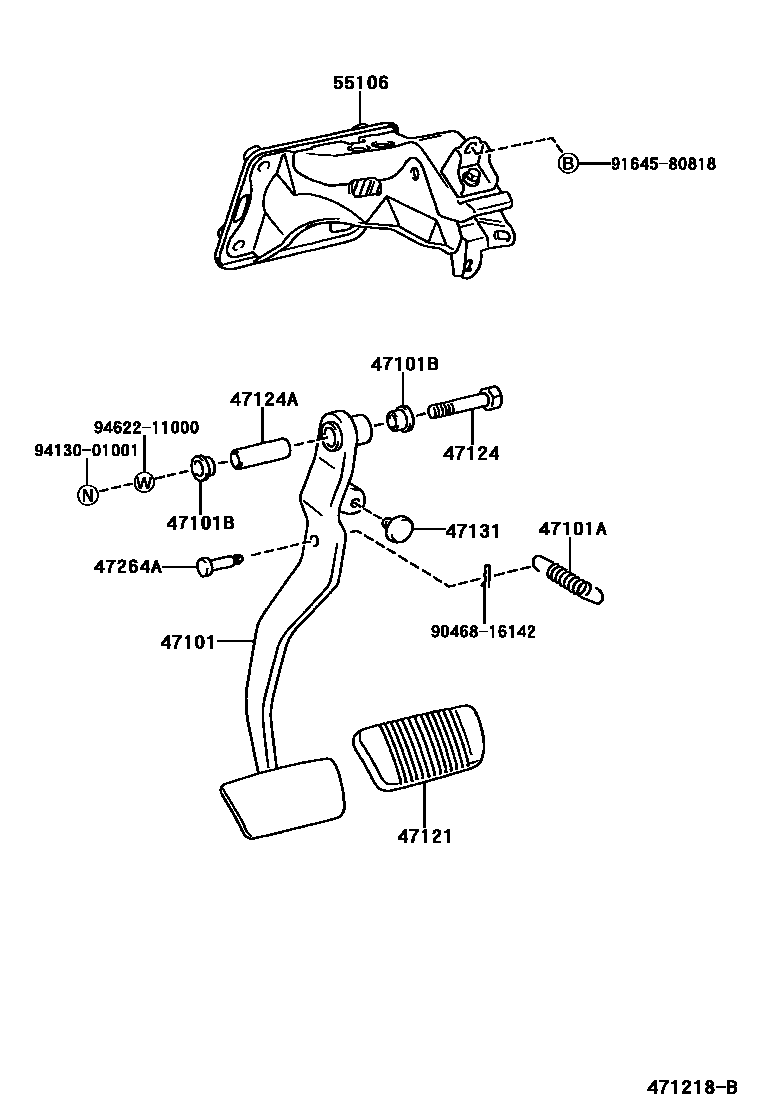

Toyota PROGRES — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-51010iJCG1#199805-200104

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14032iJCG1#199805-200104

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iJCG1#199805-200104

47121PAD, BRAKE PEDAL

main47121-50010iJCG1#199805-200101

main47121-50020iJCG1#200101-200104

47124SHAFT, BRAKE PEDAL

main90101-10015iJCG1#199805-200104

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iJCG1#199805-200104

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iJCG1#199805-200104

47264APIN(FOR PUSH ROD)

main90249-10064iJCG1#199805-200104

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-51010iJCG1#199805-199910

main55106-51011iJCG10,11199910-200009

main55106-51012iJCG10,11200009-200104

main55106-51020iJCG15199912-200009

main55106-51021iJCG15200009-200104

9046816142

main90468-16142

9164580818

main91645-80818

9413001001

main94130-01001

9462211000

main94622-11000

13 parts on this diagram · 1 diagram in section
