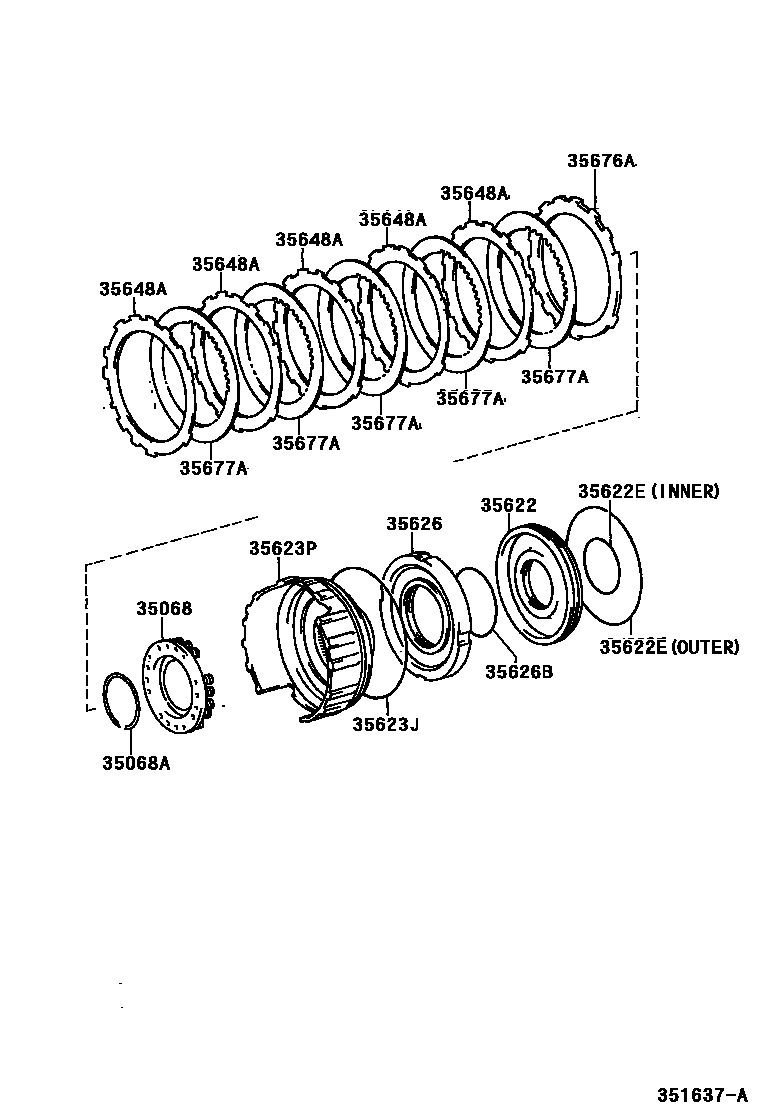

Toyota PROGRES — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35622ERING, O (FOR BRAKE PISTON NO.2)
35623JRING, O (FOR 1ST & REVERSE BRAKE)
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
11 parts on this diagram · 2 diagrams in section
BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) for Toyota PROGRES
This section contains 18 genuine Toyota parts for the BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) system of the Toyota PROGRES. Key components include: SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN, RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING), FLANGE SUB-ASSY, RR PLANETARY RING GEAR, RACE, THRUST BEARING (FOR PLANETARY RING GEAR FLANGE), BEARING, THRUST NEEDLE ROLLER, NO.1.
