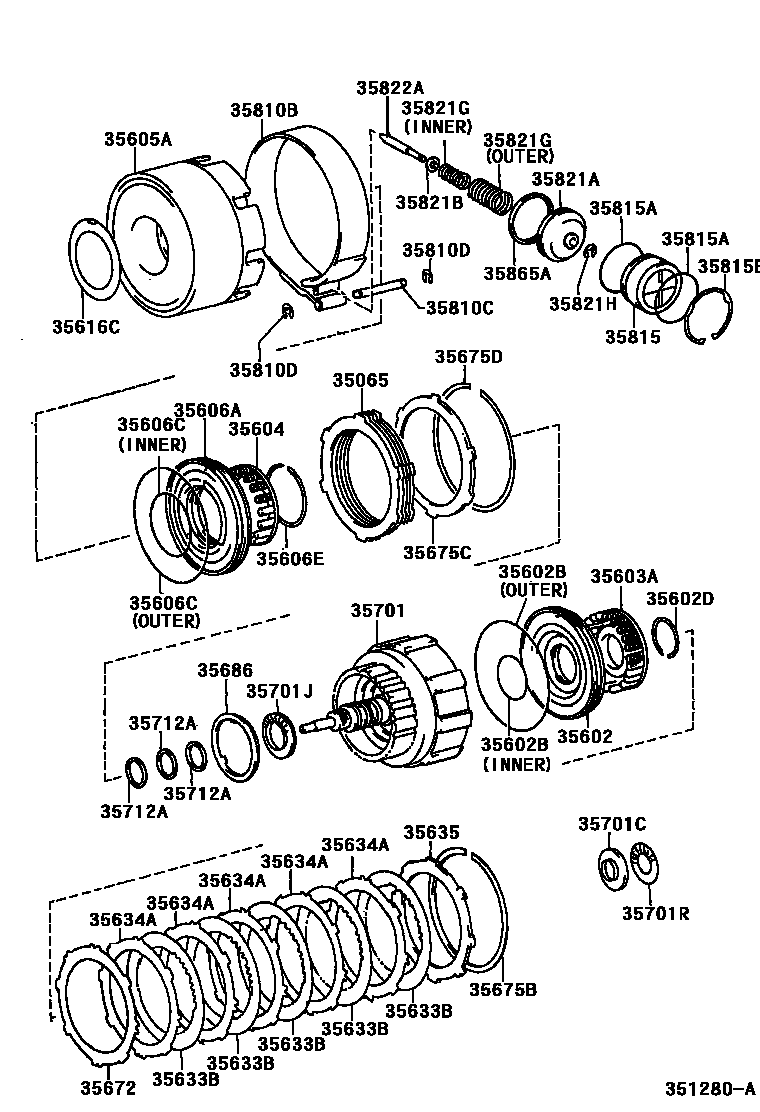

Toyota PROGRES — BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35065DRUM SUB-ASSY, REAR CLUTCH & FRONT SUN GEAR
35602PISTON SUB-ASSY, FRONT CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35605ADRUM SUB-ASSY, DIRECT CLUTCH
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)
35701SHAFT SUB-ASSY, INPUT
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35712ARING, INPUT SHAFT OIL SEAL
35810BBAND ASSY, 2ND COAST BRAKE
35810CPIN (FOR 2ND COAST BRAKE BAND)
35810DRING, E (FOR 2ND COAST BRAKE BAND PIN)
35815ARING, O (FOR 2ND COAST BRAKE COVER)
35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)
35821APISTON, 2ND COAST BRAKE
35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)
35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
35821HRING, E (FOR 2ND COAST BRAKE PISTON)
35822AROD, 2ND COAST BRAKE PISTON
35865ARING, 2ND COAST BRAKE PISTON OIL SEAL
36 parts on this diagram · 3 diagrams in section
