Toyota PROGRES — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30280i199805-200104

main74404-51020i199805-200104

74431TRAY, BATTERY

main74431-51010i199805-200104

74451BBOLT, BATTERY CLAMP

main74451-51010i199805-200104

74452BBOLT, BATTERY CLAMP, NO.2

main74452-51010i199805-200104

74455AHOSE, BATTERY DRAIN

main74455-30020i199805-200104

74489ACOVER, BATTERY CLAMP

main74489-51010i199805-200104

9011906492

main90119-06492

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 1 diagram in section

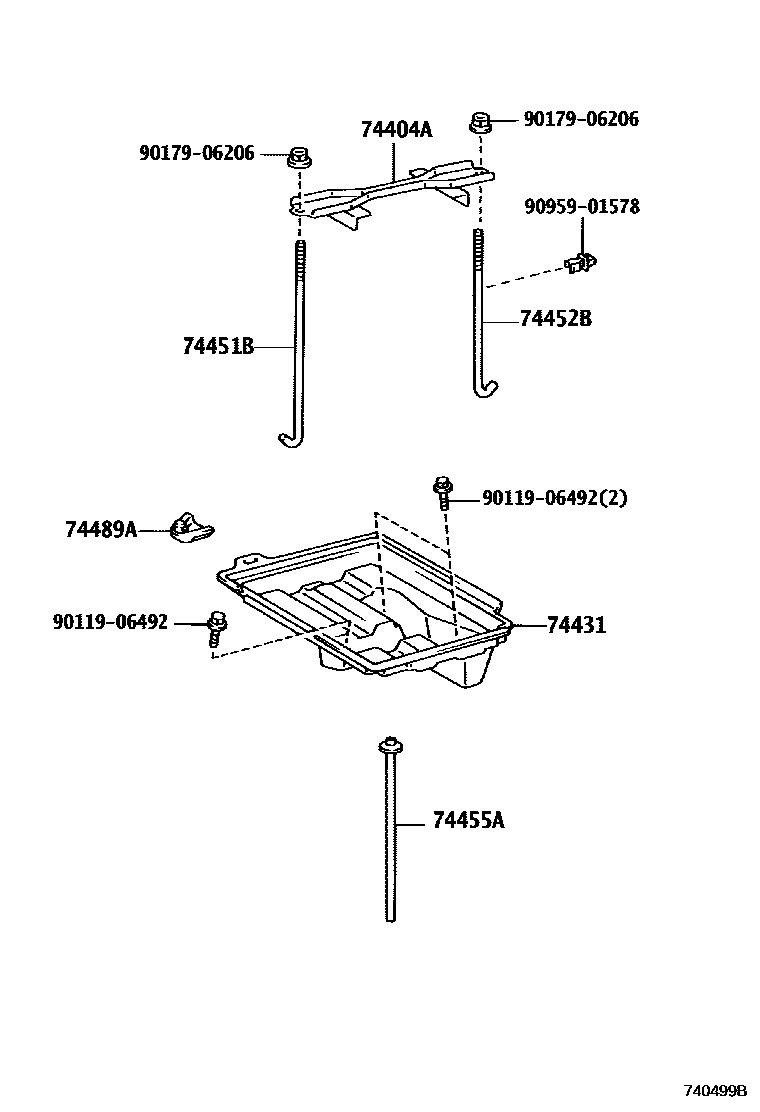

BATTERY CARRIER for Toyota PROGRES

This section contains 9 genuine Toyota parts for the BATTERY CARRIER system of the Toyota PROGRES. Key components include: CLAMP SUB-ASSY, BATTERY, TRAY, BATTERY, BOLT, BATTERY CLAMP, BOLT, BATTERY CLAMP, NO.2, HOSE, BATTERY DRAIN.
