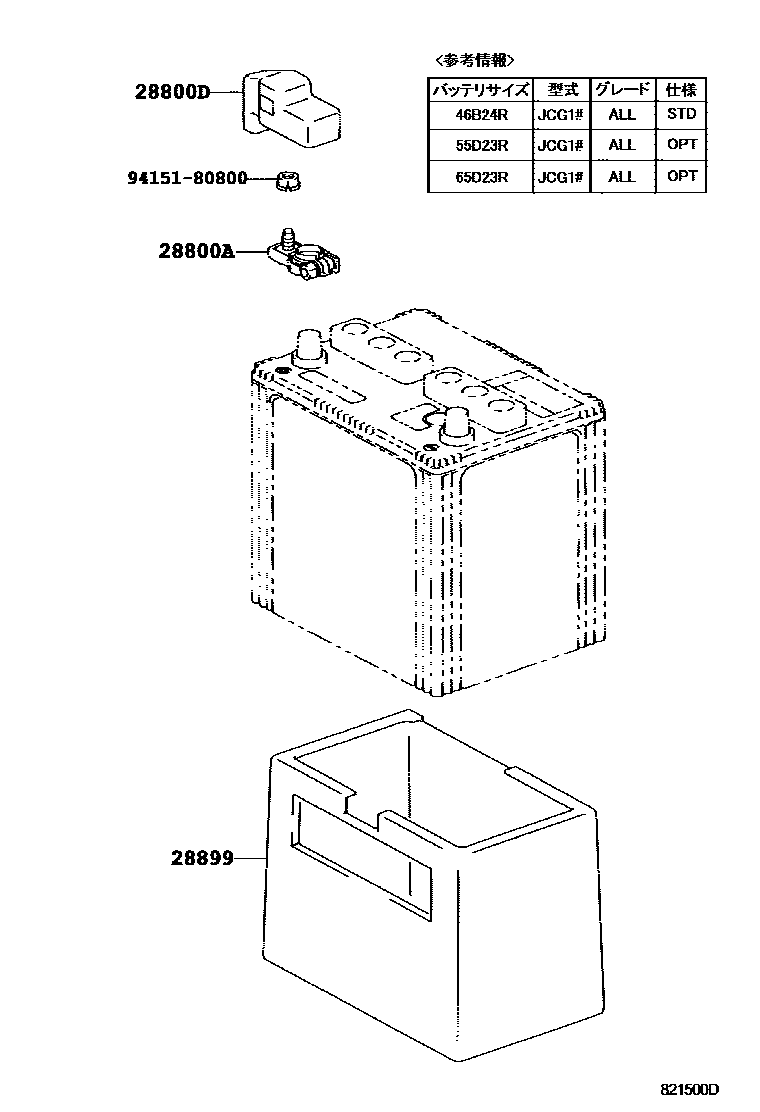

Toyota PROGRES — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i1JZGE,2JZGE..JCG1#199805-200104

main90982-05035i1JZGE,2JZGE..JCG1#199805-200104

main90982-05052i1JZFSE,2JZFSE..JCG1#200104

main90982-05053i1JZFSE,2JZFSE..JCG1#200104

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i1JZFSE,2JZFSE..JCG1#200104

28899INSULATOR, BATTERY

main28899-76010i1JZGE,2JZGE..JCG1#199805-200104

main28899-76030i1JZGE,2JZGE..JCG1#199805-200104

9415180800

main94151-80800

4 parts on this diagram · 1 diagram in section
