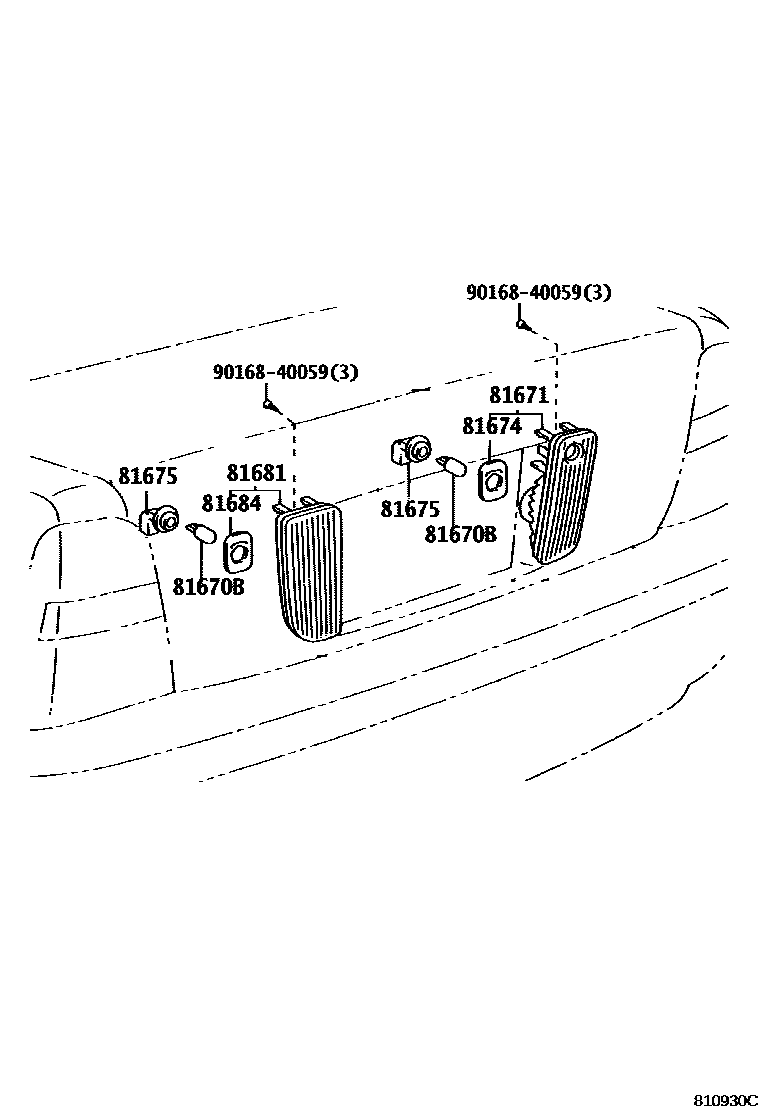

Toyota PROGRES — BACK UP LAMP

0001 1 0002 1

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2iJCG1#199805-200104

81671LENS, BACK-UP LAMP, RH

main81671-51010iJCG1#199805-200104

main81671-51020iJCG10,11199905-200104

main81671-51040iJCG1#200104-200511

main81671-51041iJCG1#200512

81674GASKET, BACK-UP LAMP BODY, RH

main81674-51010iJCG1#199805-200104

main81674-51040iJCG1#200104-200511

81675SOCKET & WIRE, BACK-UP LAMP

main90075-99005×2iJCG1#199805-200104

81681LENS, BACK-UP LAMP, LH

main81681-51010iJCG1#199805-200104

main81681-51020iJCG10,11199905-200104

81684GASKET, BACK UP LAMP BODY, LH

main81674-51010iJCG1#199805-200104

main81684-51030iJCG1#200104-200511

9016840059

main90168-40059

7 parts on this diagram · 2 diagrams in section
