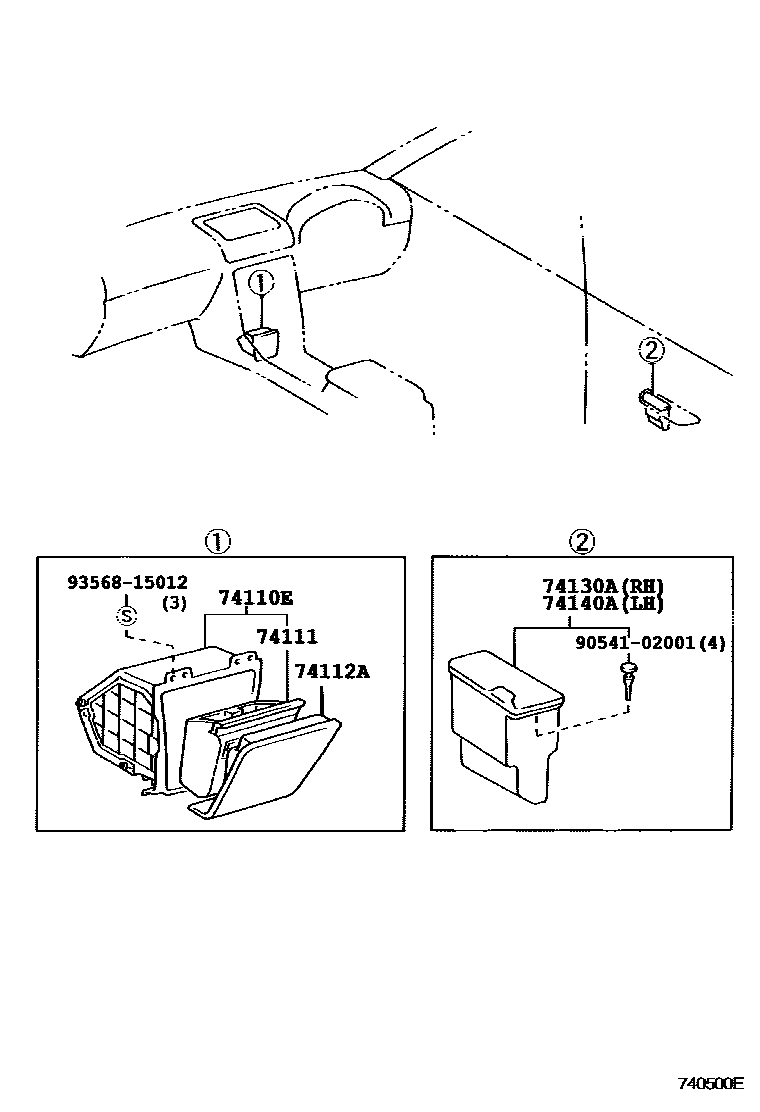

Toyota PROGRES — ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74101-51010iJCG1#200104

74111BOX, FRONT ASH RECEPTACLE

main74111-51010iJCG1#200104

74112ADOOR, FRONT ASH RECEPTACLE

main74112-51010iJCG1#199805-200104

main74112-51020iJCG1#199805-200005

main74112-51020-E0iJCG1#200104-200706

main74112-51030-E0iJCG1#200005-200104

main74112-51040-E0iJCG1#200104-200706

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-51010-A0iJCG1#200104-200706

IVORY,TRIM0#

main74130-51010-C0iJCG1#199805-200104

BLACK,TRIM2#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-51010-A0iJCG1#199805-200104

IVORY,TRIM00,01

main74140-51010-C0iJCG1#199805-200104

BLACK,TRIM2#

9054102001

main90541-02001

9356815012

main93568-15012

7 parts on this diagram · 1 diagram in section
