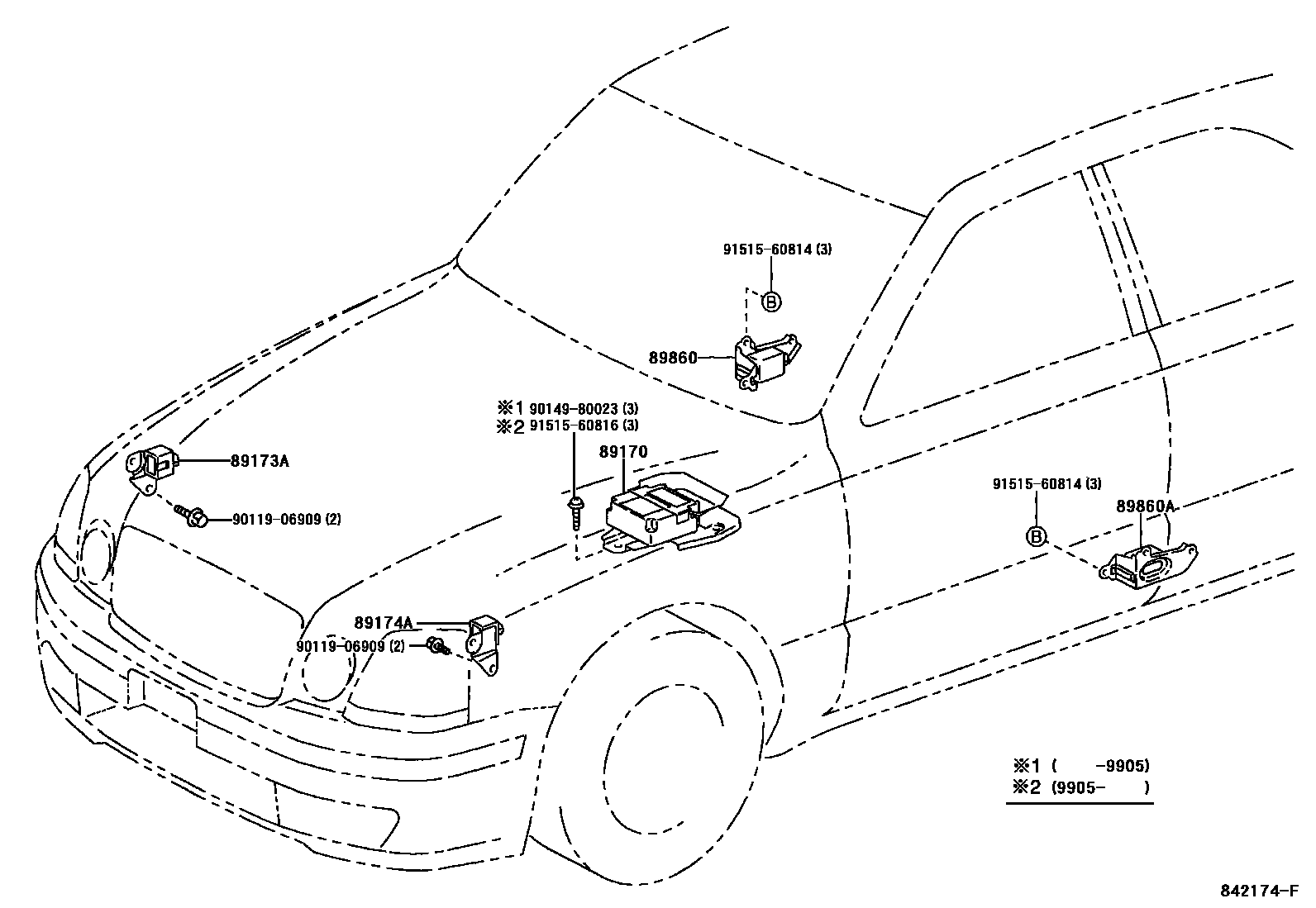

Toyota PROGRES — AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-51010iJCG1#199805-200104

main89170-51020iJCG1#200104

main89170-51030iJCG10,15200104

89173ASENSOR, AIRBAG, FRONT RH

main89173-59065iJCG1#199805-200104

main89173-59165iJCG1#200104

89174ASENSOR, AIRBAG, FRONT LH

main89174-59025iJCG1#199805-200104

main89174-59105iJCG1#200104

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-51010iJCG1#199805-200104

main89860-51020iJCG1#200104

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-51010iJCG1#199805-200104

main89830-51020iJCG1#200104

9011906909

main90119-06909

9014980023

main90149-80023

9151560814

main91515-60814

9151560816

main91515-60816

9 parts on this diagram · 2 diagrams in section
