Toyota PROGRES — ABS & VSC

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iJCG1#199805-200104

88263ARELAY, SKID CONTROL

main88263-24020iJCG1#199805-200104

88263ERELAY, SKID CONTROL NO.2

main88263-24030iJCG1#199805-200104

89183ASENSOR, YAWRATE

main89183-51010iJCG1#199805-200104

89245ASENSOR, STEERING

main89245-12010iJCG1#200104-200706

main89245-30040iJCG15199912-200104

main89245-51010iJCG10,11199805-200104

89441ASENSOR, DECELERATION

main89441-30050iJCG1#200104

main89441-51010iJCG1#199805-200104

89540COMPUTER ASSY, SKID CONTROL

main89540-51010iJCG1#199805-199905

main89540-51020iJCG10,11199905-200104

main89540-51030iJCG15199912-200104

main89540-51050iJCG10,11200104-200205

main89540-51060iJCG15200104

main89540-51090iJCG10,11200205-200512

main89540-51110iJCG10,11200512

89542SENSOR, SPEED, FRONT RH

main89542-30230iJCG10,11200104-200306

main89542-30240iJCG15199912-200104

main89542-30241iJCG15200104-200706

main89542-51010iJCG10,11199805-200104

89543SENSOR, SPEED, FRONT LH

main89543-30230iJCG10,11200104-200306

main89543-30240iJCG15199912-200104

main89543-30241iJCG15200104-200706

main89543-51010iJCG1#199805-199911

main89543-53010iJCG10,11199911-200104

89545SENSOR, SPEED, REAR RH

main89545-30060iJCG1#200104

main89545-51010iJCG1#199805-200104

89546SENSOR, SPEED, REAR LH

main89546-30060iJCG1#200104

main89546-51010iJCG1#199805-200104

89549BRACKET, SKID CONTROL COMPUTER

main89549-51010iJCG1#199805-200104

89630ACOMPUTER ASSY, 4WD

main89630-51010iJCG15199912-200104

main89630-51020iJCG15200104

89633ARELAY, TRACTION CONTROL OR VSC

main89633-24010iJCG1#199805-200104

9011906375

main90119-06375

9017906097

main90179-06097

9017906161

main90179-06161

9161560825

main91615-60825

91626B0616

main91626-B0616

9163560616

main91635-60616

9163560620

main91635-60620

91651B0616

main91651-B0616

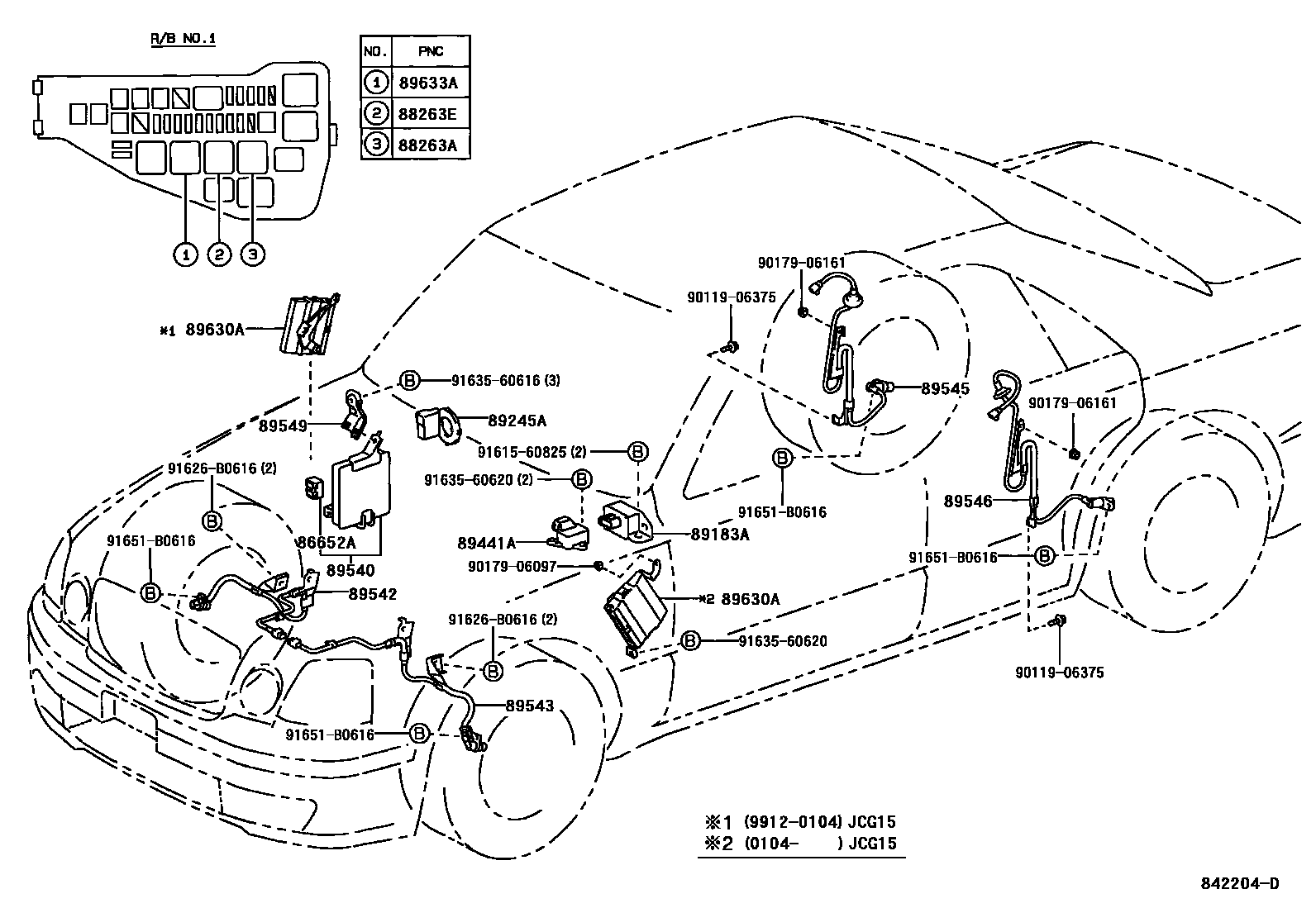

22 parts on this diagram · 1 diagram in section
