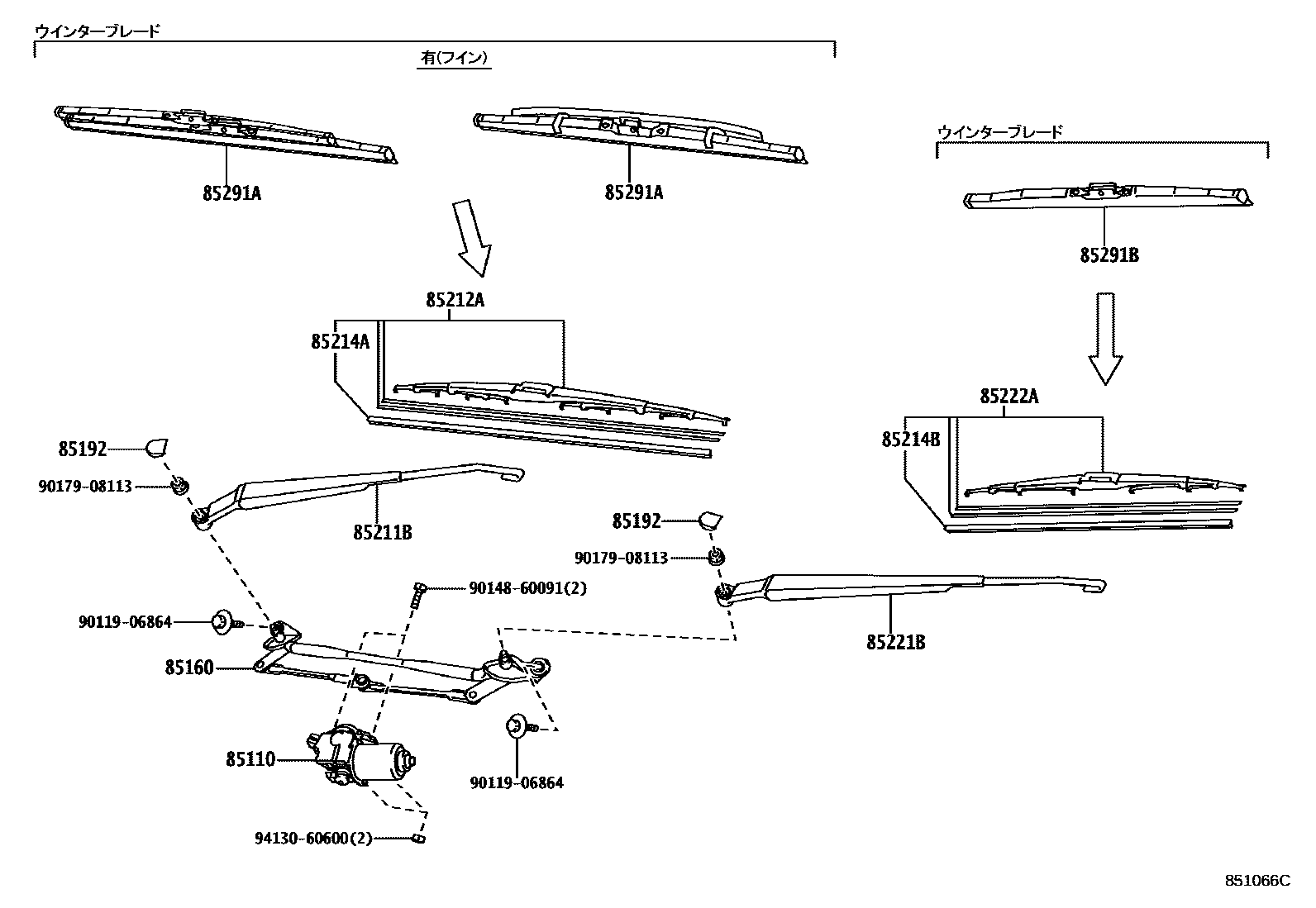

Toyota PROBOX/SUCCEED — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52180iNCP5#,NLP51200206

85160LINK ASSY, WINDSHIELD WIPER

main85150-52130iNCP5#,NLP51200206-200210

sub85150-52200

main85150-52200iNCP5#,NLP51200210

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNCP5#,NLP51200206

85211BARM, FRONT WIPER, RH

main85211-52130iNCP5#,NLP51200206

85212ABLADE, FR WIPER, RH

main85212-37081iNCP5#,NLP51200206-200405

main85212-52150iNCP5#,NLP51200406-200512

sub85212-52151

main85212-52151iNCP5#,NLP51200512-201409

sub85212-26051

85214ARUBBER, WIPER, RH

main85214-24050iNCP5#,NLP51200406-200605

sub85214-24051

main85214-24051iNCP5#,NLP51200606

main85214-53050iNCP5#,NLP51200206-200406

sub85214-24050

85214BRUBBER, WIPER, LH

main85214-22420iNCP5#,NLP51200206-200406

sub85214-46011

main85214-46010iNCP5#,NLP51200406-200605

sub85214-46011

main85214-46011iNCP5#,NLP51200606

85221BARM, FRONT WIPER, LH

main85221-52130iNCP5#,NLP51200206

85222ABLADE, FR WIPER, LH

main85222-52070iNCP5#,NLP51200206-200605

sub85222-52071

main85222-52071iNCP5#,NLP51200606

sub85222-28151

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050iNCP51..U;NCP55..4FC..U200303-201409

main85291-33050iNCP51..U;NCP55..4FC..U200303-201409

main85291-33050iNCP5#,NLP51200206-201409

main85291-33050iNCP5#,NLP51200206-201409

9011906864

main90119-06864

9014860091

main90148-60091

9017908113

main90179-08113

9413060600

main94130-60600

15 parts on this diagram · 1 diagram in section
