Toyota PROBOX/SUCCEED — WINDSHIELD WASHER

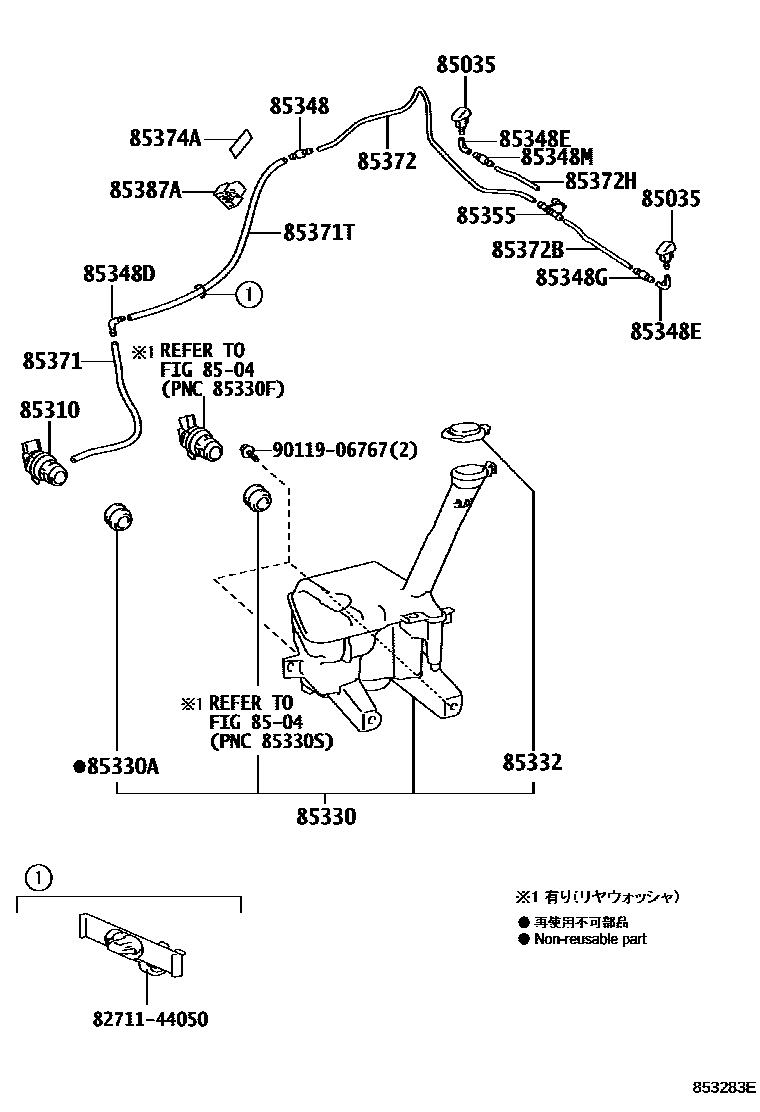

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2i201409

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201409

85330JAR ASSY, WINDSHIELD WASHER

main85315-52400i201409

main85315-52420i201409

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201409

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i201409

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201409

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i201409

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481×2i201409

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i201409

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i201409

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201409

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299i201409

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-33299i201409

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299i201805

main90446-07001i201409-201805

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299i201409

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i201409

85374APROTECTOR, WASHER HOSE

main85389-48020i201409-201412

main85389-52320i201412

85387ACLAMP, WASHER, NO.2

main90949-01C82i201409-201609

8271144050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44050

9011906767

main90119-06767

21 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota PROBOX/SUCCEED

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PROBOX/SUCCEED. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
