Toyota PROBOX/SUCCEED — WINDSHIELD WASHER

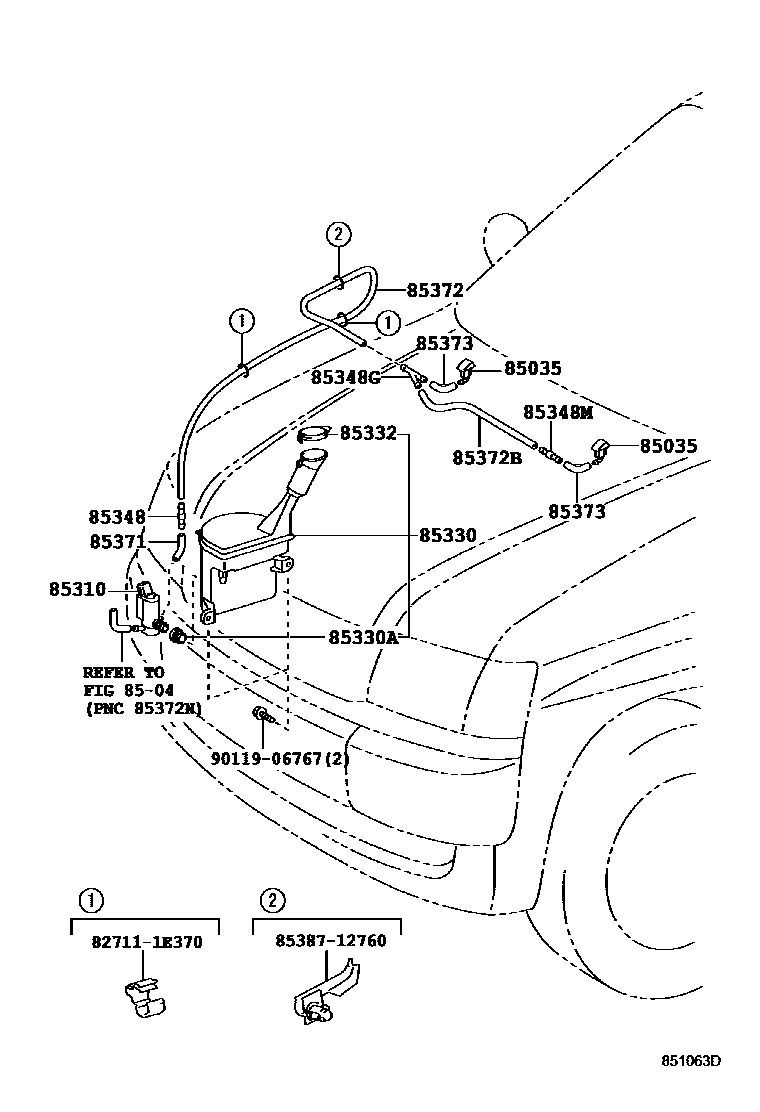

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-68010×2i200206

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-20460supersedes 85330-10280i200206-201409

main85330-52010i200909-201409

main85330-10280i200303-200909

85330JAR ASSY, WINDSHIELD WASHER

main85315-52050i200909

main85315-52110i200206-200909

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200206

85332CAP, WINDSHIELD WASHER JAR

main85316-42011i200206

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200206

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200206

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200206

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200206

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i200206-200303

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200206

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85355-14481×2i200206

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8538712760CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12760

9011906767

main90119-06767

16 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PROBOX/SUCCEED

This section contains 16 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PROBOX/SUCCEED. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
