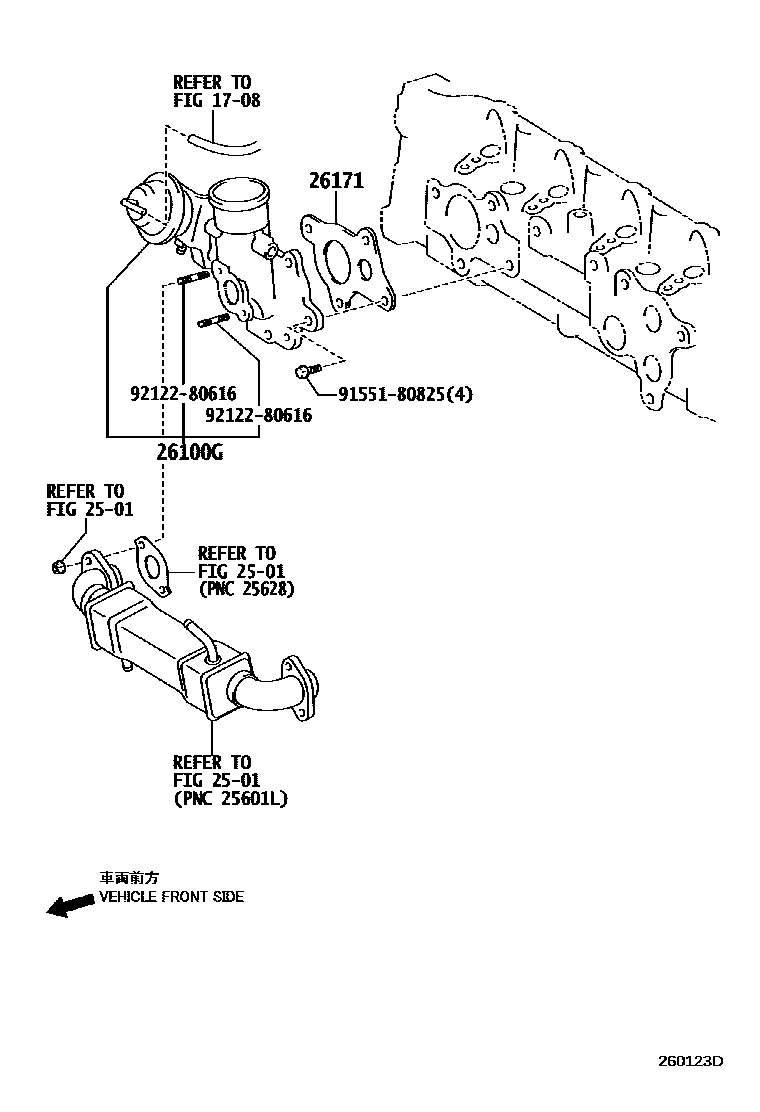

Toyota PROBOX/SUCCEED — VENTURI

1708VACUUM PIPING

→ Go to FIG 17-08

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

26100GBODY ASSY, DIESEL THROTTLE

main26100-33020i200206-200708

26171GASKET, VENTURI

main26171-33010i200206-200301

main26171-33011i200301-200708

9155180825

main91551-80825

9212280616

main92122-80616

6 parts on this diagram · 1 diagram in section

VENTURI for Toyota PROBOX/SUCCEED

This section contains 6 genuine Toyota parts for the VENTURI system of the Toyota PROBOX/SUCCEED. Key components include: VACUUM PIPING, EXHAUST GAS RECIRCULATION SYSTEM, BODY ASSY, DIESEL THROTTLE, GASKET, VENTURI.
