Toyota PROBOX/SUCCEED — V-BELT

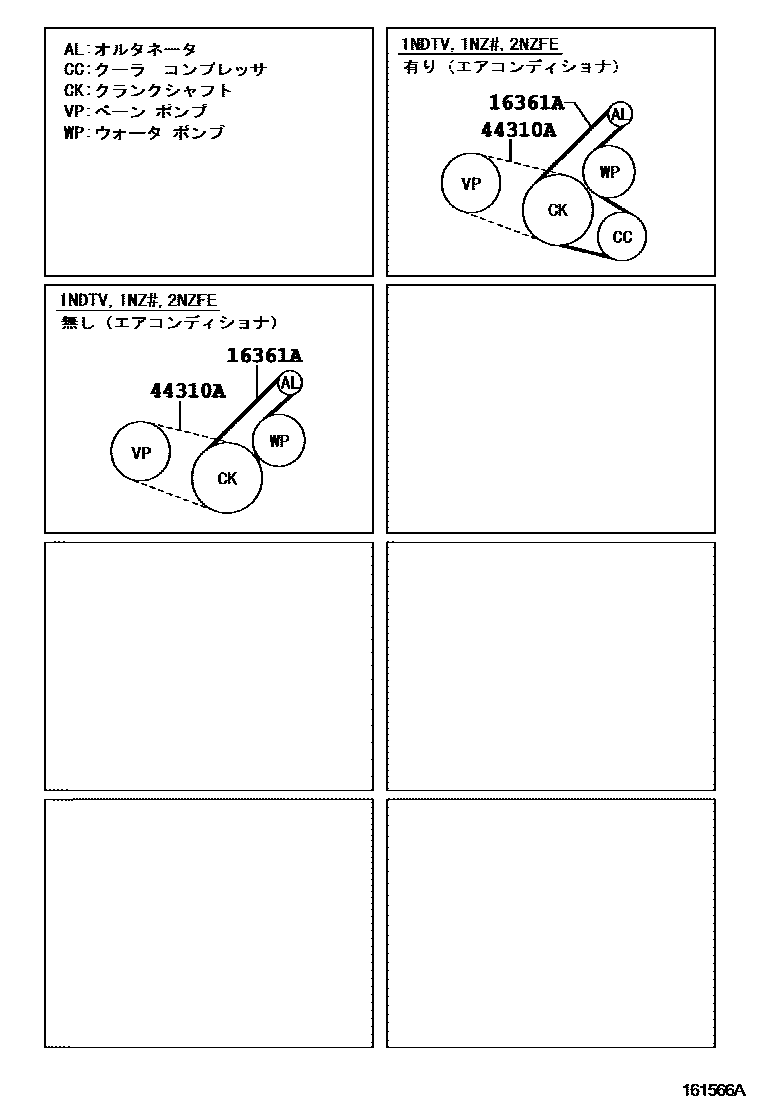

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02500i200206-200302

main90916-02520i200302-200306

main90916-02543i200206-200306

main90916-02556i200306-201202

main90916-02569i200306

main90916-02705i201203

main99365-A1190i200206-200312

main99365-C1190i200312-200708

main90916-02499i200206-201112

main90916-02704i201201

44310ABELT, V(FOR VANE PUMP)

main90916-02521i200206-200708

main90916-02522i200206-200708

main90916-02575i200206-200304

main90916-02711i201111

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota PROBOX/SUCCEED

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota PROBOX/SUCCEED. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP).
