Toyota PROBOX/SUCCEED — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1������-� 0005 1�������� �������� 0006 1��� 0007 1������������ 0008 1�������� & ������������� 0009 1���,�-�,��� & �������

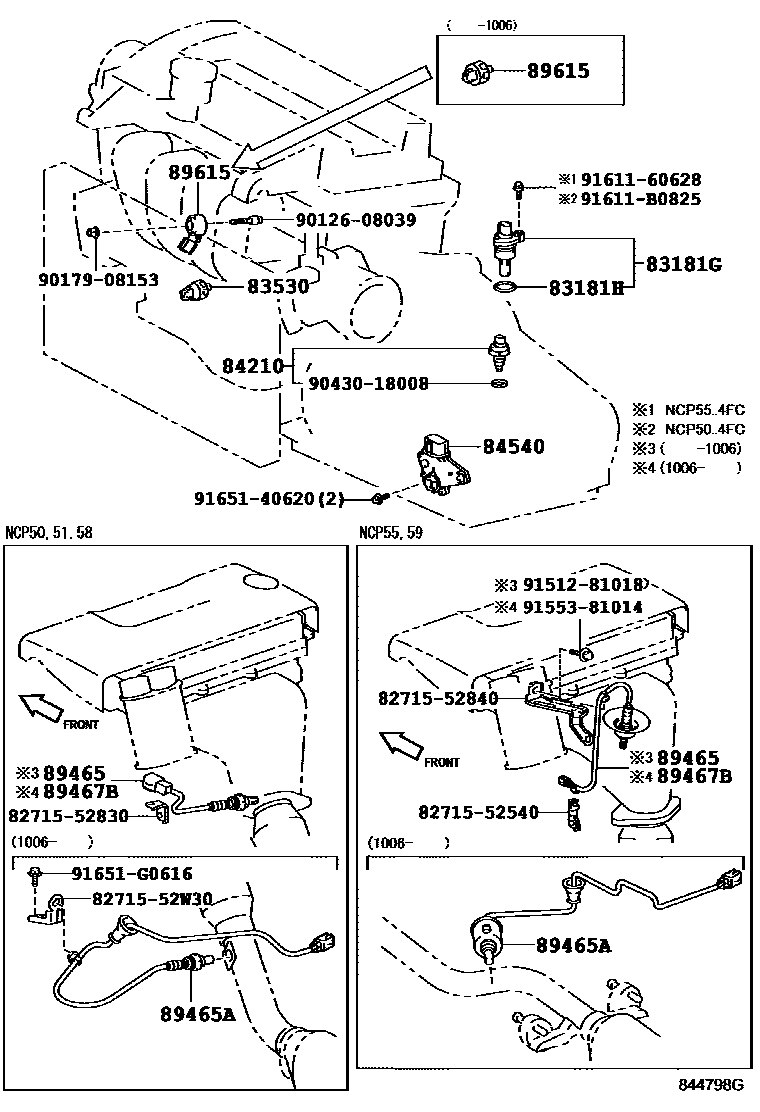

83181GSENSOR, SPEEDOMETER

main83181-12020iNCP50,51,55..5F..(DX,GL,U,UL)200206-201006

main83181-12040iNCP55..4FC..(DX,GL,U,UL)200206-201006

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iNCP51..4FC;NCP55..4FC..DXJ200206-201409

main96711-24030iNCP50,51,55..5F..(DX,GL,U,UL)200206-201006

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iNLP51200206-200708

main83530-28020iNCP5#200206

main83530-60010iNLP51200206-200708

main83530-60020iNCP5#200206

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNCP50,55,NLP51..5F..DXJ200206-200304

main84210-52050iNCP50,51,55,58,59..5F201206-201409

84540SWITCH ASSY, NEUTRAL START

main84540-52010iNCP50..4FC..DXJ200206-200304

main84540-52050iNCP51,52,55,58,59..4FC..(DX,F,GL,TX,U,UL)200206-201409

89465SENSOR, OXYGEN

main89465-20810iNCP52;NCP50..DXJ200206-201409

main89465-52210iNCP55,59..4FC200212-201006

main89465-52240iNCP55,59..5F200206-200301

89465ASENSOR, OXYGEN NO.2

main89465-52340iNCP52200304-201409

main89465-52610iNCP50,51,58201006-201409

main89465-52620iNCP55,59201006-201409

89467BSENSOR, AIR FUEL RATIO

main89467-52100iNCP55,59201006-201409

main89467-52200iNCP50,51,58201006-201409

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP50,51,55,58,59201006

main89615-52030iNCP50,51,55,58,59200206-201006

8271552540BRACKET,WIRING HARNESS CLAMP

main82715-52540

8271552830BRACKET,WIRING HARNESS CLAMP

main82715-52830

8271552840BRACKET,WIRING HARNESS CLAMP

main82715-52840

8271552W30BRACKET,WIRING HARNESS CLAMP

main82715-52W30

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9151281018

main91512-81018

9155381014

main91553-81014

9161160628

main91611-60628

91611B0825

main91611-B0825

9165140620

main91651-40620

91651G0616

main91651-G0616

22 parts on this diagram · 9 diagrams in section
