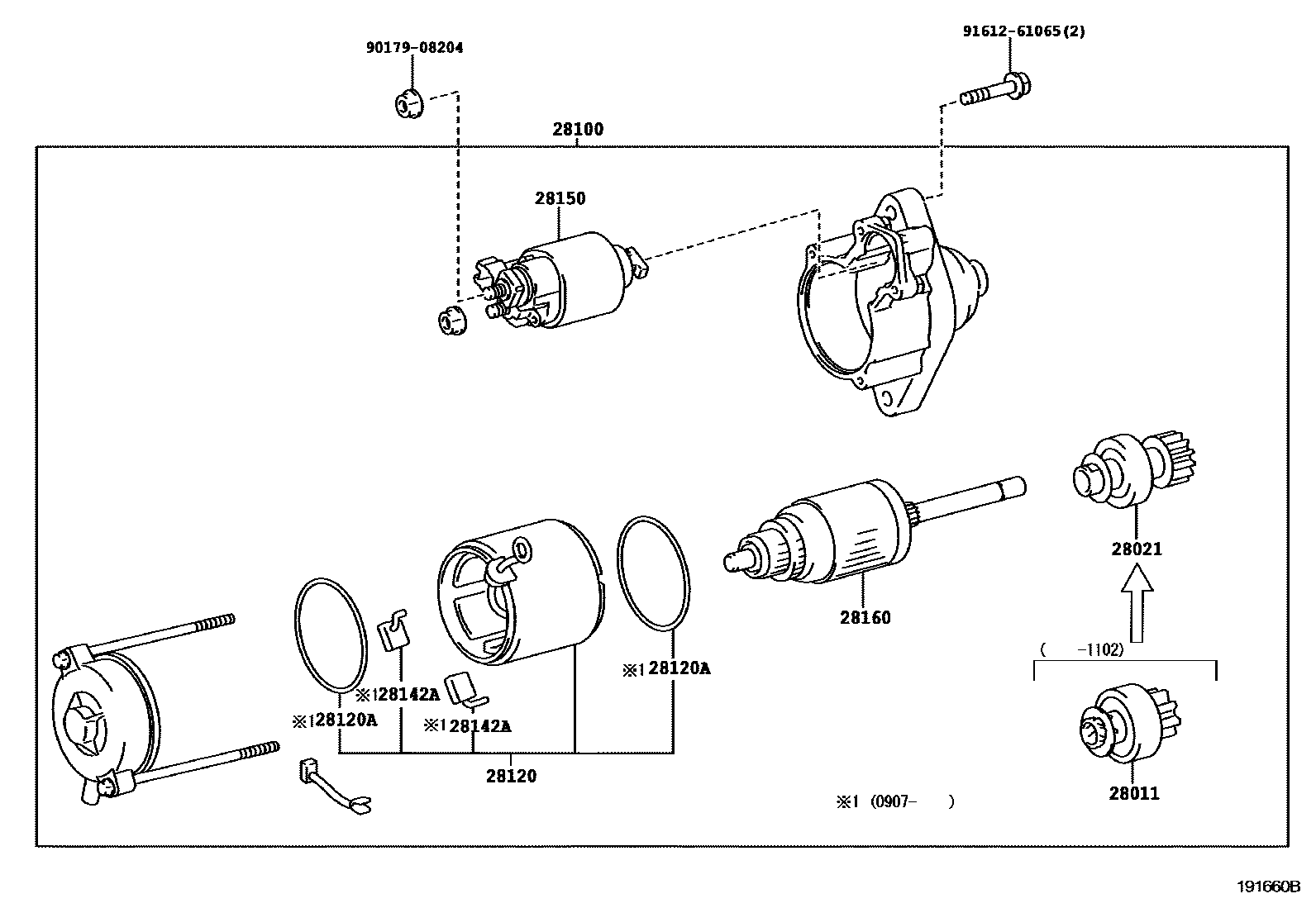

Toyota PROBOX/SUCCEED — STARTER

0001 112V 0.8KW 0002 112V 1.0KW 0003 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-21050i1NZFE,2NZFE..NCP5#200206-200208

main28011-55050i1NDTV..NLP51200206-200708

main28011-70020i1NZ#,2NZFE..NCP5#200208-201102

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-70020i1NZ#,2NZFE..NCP5#201102-201409

28100STARTER ASSY

main28100-21020i1NZFE,2NZFE..NCP50,51,55,58,59200208-200906

sub28100-21021

main28100-21021i1NZFE,2NZFE..NCP50,51,55,58,59200907-201407

sub28100-21022

main28100-21022i1NZFE,2NZFE..NCP50,51,55201408-201409

main28100-21030i1NZFNE..NCP52200304-200906

sub28100-21031

main28100-21031i1NZFNE..NCP52200907-201407

sub28100-21032

main28100-21031i1NZFNE..NCP52200907-201407

sub28100-21032

main28100-21032i1NZFE,2NZFE..NCP50,51,55201408-201409

main28100-21032i1NZFNE..NCP52201408-201409

main28100-21050i1NZFE,2NZFE..NCP5#200206-200208

sub28100-21020

main28100-33050i1NDTV..NLP51200206-200708

28120YOKE ASSY, STARTER

main28120-23020i1NZFE,2NZFE..NCP5#200206-200208

main28120-40130i1NZFNE..NCP52200907-201409

main28120-47120i1NZFE,2NZFE..NCP50,51,55,58,59200907-201409

main28120-66040i1NDTV..NLP51200206-200708

main28120-70020i1NZFE,2NZFE..NCP50,51,55,58,59200208-200907

main28120-70050i1NZFNE..NCP52200304-200907

28120ARING, O(FOR STARTER YOKE)

main90099-14092i1NZ#,2NZFE..NCP5#200907-201409

28142ASTARTER KIT

main28142-70020i1NZ#,2NZFE..NCP5#200907-201409

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZ#,2NZFE..NCP5#200208-200705

main28150-21020i1NZ#,2NZFE..NCP5#200706-201409

main28150-46220i1NDTV..NLP51200206-200708

28160ARMATURE ASSY, STARTER

main28160-21050i1NZFE,2NZFE..NCP5#200206-200208

main28160-70021i1NZFE,2NZFE..NCP50,51,55,58,59200208-201409

main28160-70050i1NZFNE..NCP52200304-201409

main28160-74070i1NDTV..NLP51200206-200708

9017908204

main90179-08204

9161261065

main91612-61065

10 parts on this diagram · 3 diagrams in section
