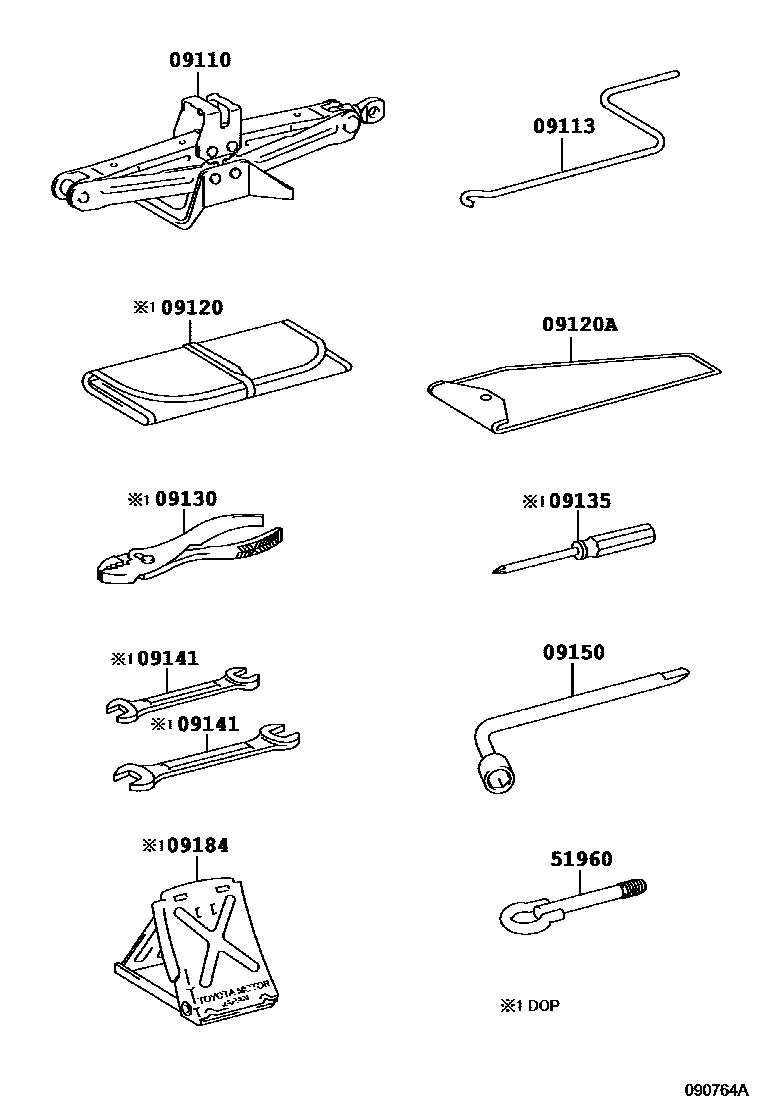

Toyota PROBOX/SUCCEED — STANDARD TOOL

09110JACK ASSY

main09111-52060i201409

09113HANDLE, JACK

main09113-52031i201409

09120BAG, TOOL

main09120-16030i201409

09120ACASE, TOOL

main09120-52070i201409

09130PLIERS

main99913-11500i201409

09135DRIVER, SCREW

main99915-10700i201409

09141SPANNER

main99914-10810i201409

main99914-11214i201409

09150WRENCH, HUB NUT BOX

main09150-40010i201409

09184STOPPER, WHEEL

main09184-00010i201409

51960HOOK ASSY, FRONT

main51960-47020i201409-201510

main51960-52090i201511

10 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota PROBOX/SUCCEED

This section contains 10 genuine Toyota parts for the STANDARD TOOL system of the Toyota PROBOX/SUCCEED. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, CASE, TOOL, PLIERS.
