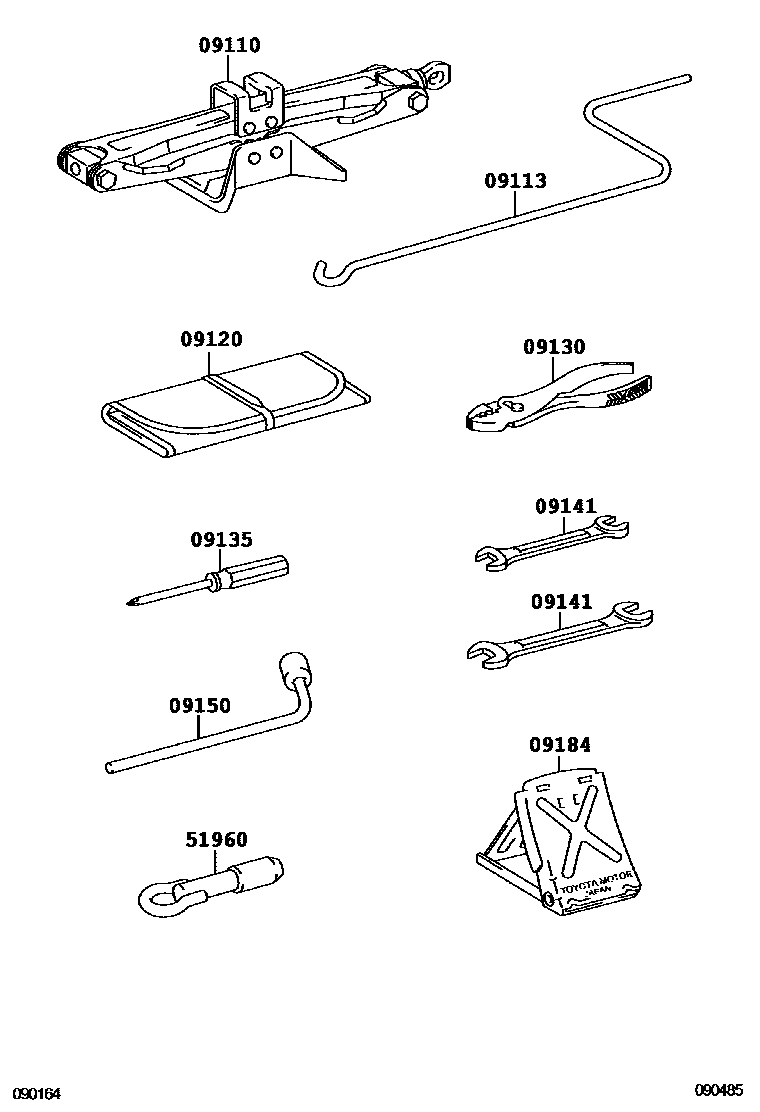

Toyota PROBOX/SUCCEED — STANDARD TOOL

09110JACK ASSY

main09111-52040i200206-200307

main09111-52041i200307

09113HANDLE, JACK

main09113-52030i200206-200307

main09113-52031i200307

09120BAG, TOOL

main09120-16030i200206

09130PLIERS

main99913-11500i200206

09135DRIVER, SCREW

main99915-10700i200206

09141SPANNER

main99914-10810i200206

main99914-11214i200206

09150WRENCH, HUB NUT BOX

main09150-40010i200206-201409

09184STOPPER, WHEEL

main09184-00010i200206-201409

51960HOOK ASSY, FRONT

main51960-52060i200206

main51960-52070i200206

9 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota PROBOX/SUCCEED

This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota PROBOX/SUCCEED. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
