Toyota PROBOX/SUCCEED — SIDE MOULDING

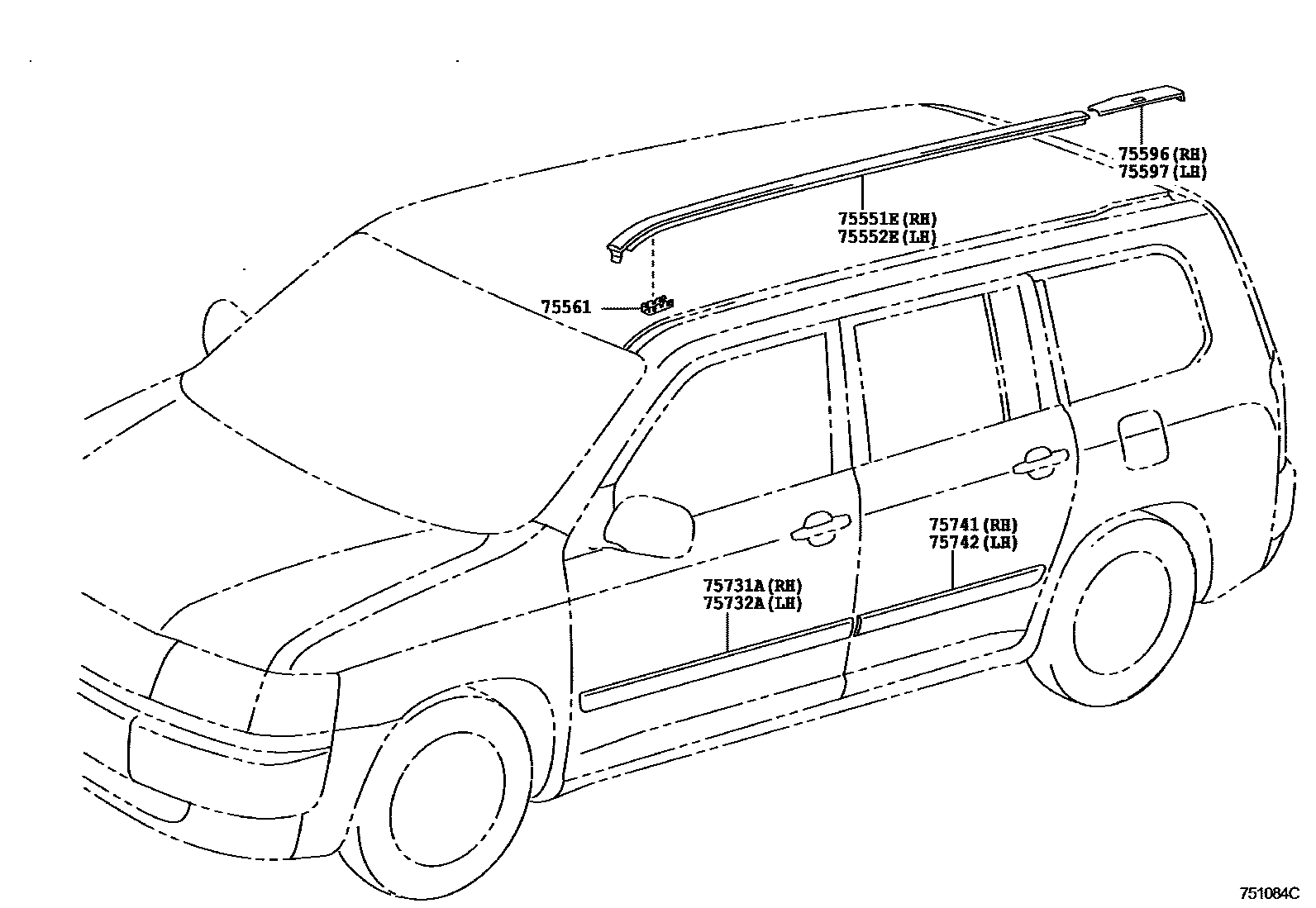

Parts diagram

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-52080i200206

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-52080i200206

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×2i200206

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-52010i200206

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75597-52010i200206

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-52030i200206-201409

main75731-52040-B0i200206-201310

main75731-52040-B1i200206-201409

main75731-52040-B2i200206-201409

main75731-52040-B3i201006-201310

main75731-52040-C0i200206

main75731-52040-D0i201006-201310

main75731-52040-G0i200508-201310

main75731-52040-H0i200305-200508

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-52030i200206-201409

main75732-52040-B0i200206-201310

main75732-52040-B1i200206-201409

main75732-52040-B2i200206-201409

main75732-52040-B3i201006-201310

main75732-52040-C0i200206-201310

main75732-52040-D0i201006-201310

main75732-52040-G0i200508-201310

main75732-52040-H0i200305-200508

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-52020i200206-201409

main75741-52030-B0i200206-201310

main75741-52030-B1i200206-201409

main75741-52030-B2i200206-201409

main75741-52030-B3i201006-201310

main75741-52030-C0i200305-201310

main75741-52030-D0i201006-201310

main75741-52030-G0i200508-201310

main75741-52030-H0i200305-200508

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-52020i200206-201409

main75742-52030-B0i200206-201310

main75742-52030-B1i200206-201310

main75742-52030-B2i200206-201409

main75742-52030-B3i201006-201310

main75742-52030-C0i200206-201310

main75742-52030-D0i201006-201310

main75742-52030-G0i200508-201310

main75742-52030-H0i200305-200508

9 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota PROBOX/SUCCEED

This section contains 9 genuine Toyota parts for the SIDE MOULDING system of the Toyota PROBOX/SUCCEED. Key components include: MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1, COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH, COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH.
