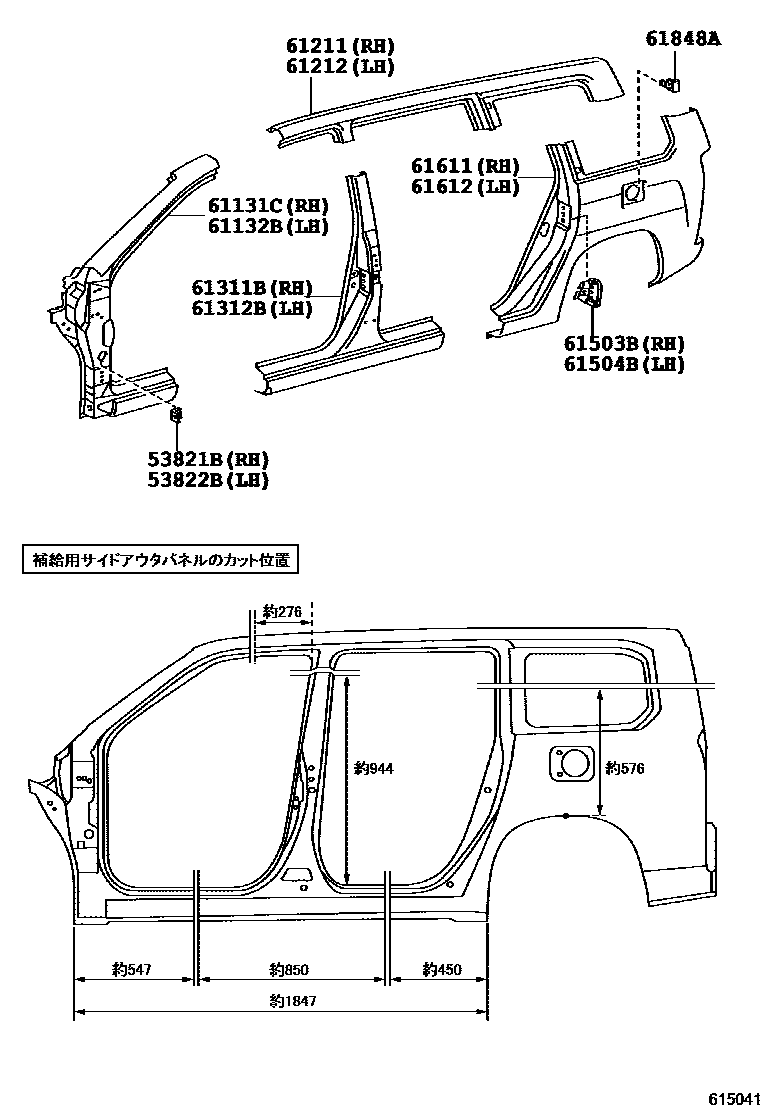

Toyota PROBOX/SUCCEED — SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010i201409

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010i201409

61131CPILLAR, FRONT BODY, OUTER RH

main61131-52360i201409

61132BPILLAR, FRONT BODY, OUTER LH

main61132-52120i201409

61211RAIL, ROOF SIDE, OUTER RH

main61211-52082i201409

61212RAIL, ROOF SIDE, OUTER LH

main61212-52091i201409

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52070i201409

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52030i201409

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-52050i201409

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-52050i201409

61611PANEL, QUARTER, RH

main61611-52212i201409

61612PANEL, QUARTER, LH

main61612-52221i201409

61848ARETAINER, QUARTER PANEL, LH

main61848-52010i201409

13 parts on this diagram · 3 diagrams in section

SIDE MEMBER for Toyota PROBOX/SUCCEED

This section contains 71 genuine Toyota parts for the SIDE MEMBER system of the Toyota PROBOX/SUCCEED. Key components include: BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, HOLE PLUG, EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH, EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH.
