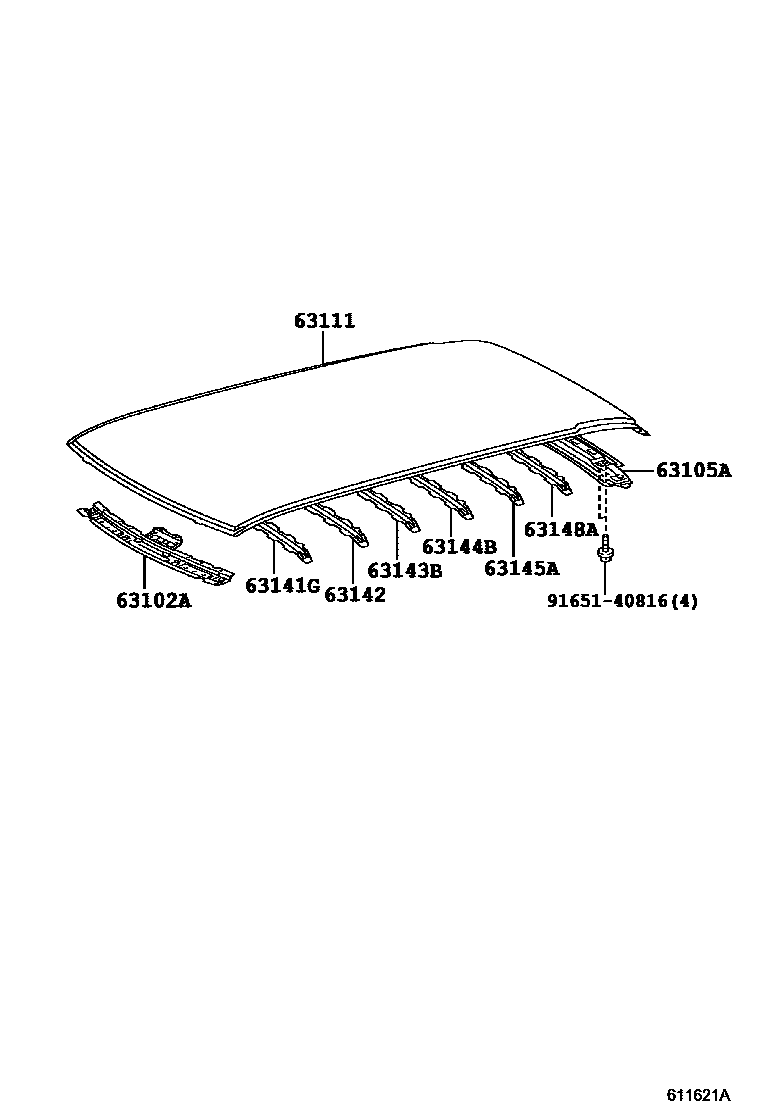

Toyota PROBOX/SUCCEED — ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52040i200206-201409

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52040i200206-201409

63111PANEL, ROOF

main63111-52170i200206

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-52050i200206

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-52030i200206

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52050i200206

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-52030i200206

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63147-52010i200206

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52040i200206

9165140816

main91651-40816

10 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota PROBOX/SUCCEED

This section contains 13 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota PROBOX/SUCCEED. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, NO.1, REINFORCEMENT, ROOF PANEL, NO.2.
