Toyota PROBOX/SUCCEED — PARTIAL ENGINE ASSEMBLY

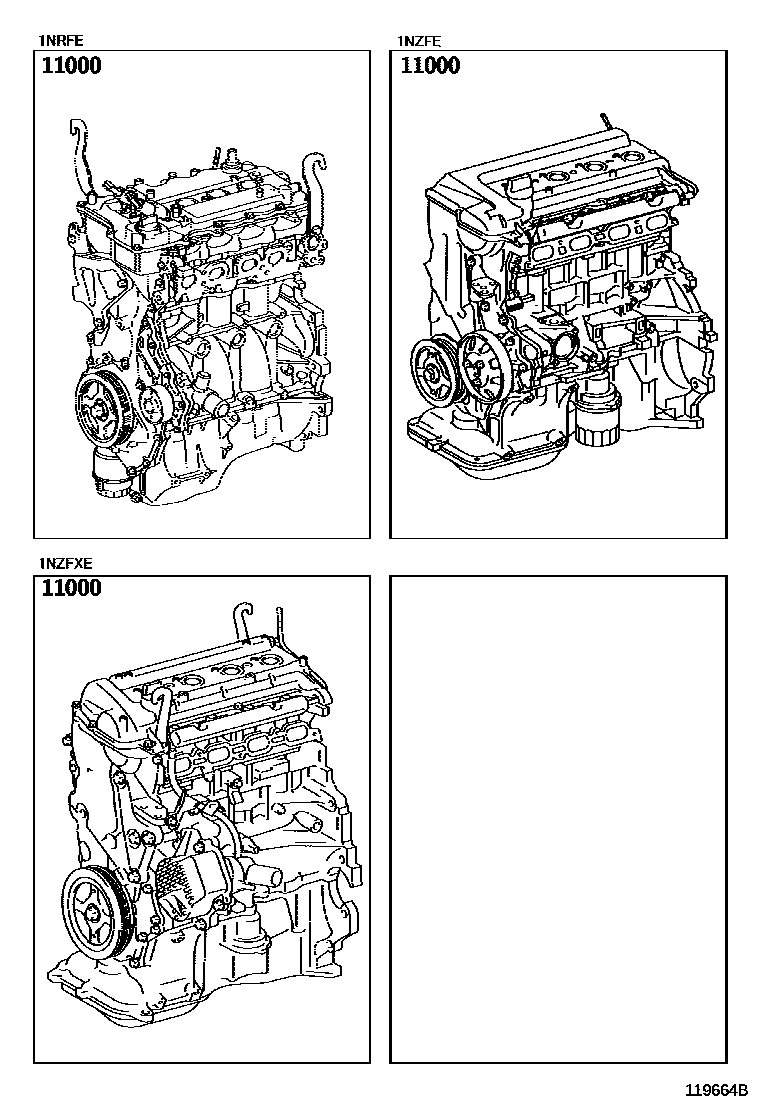

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-21851i201409

main19000-21D50i201409-201609

main19000-21D60i201609

main19000-21E20i201812

main19000-47280i201409

1 parts on this diagram · 1 diagram in section
