Toyota PROBOX/SUCCEED — MUDGUARD & SPOILER

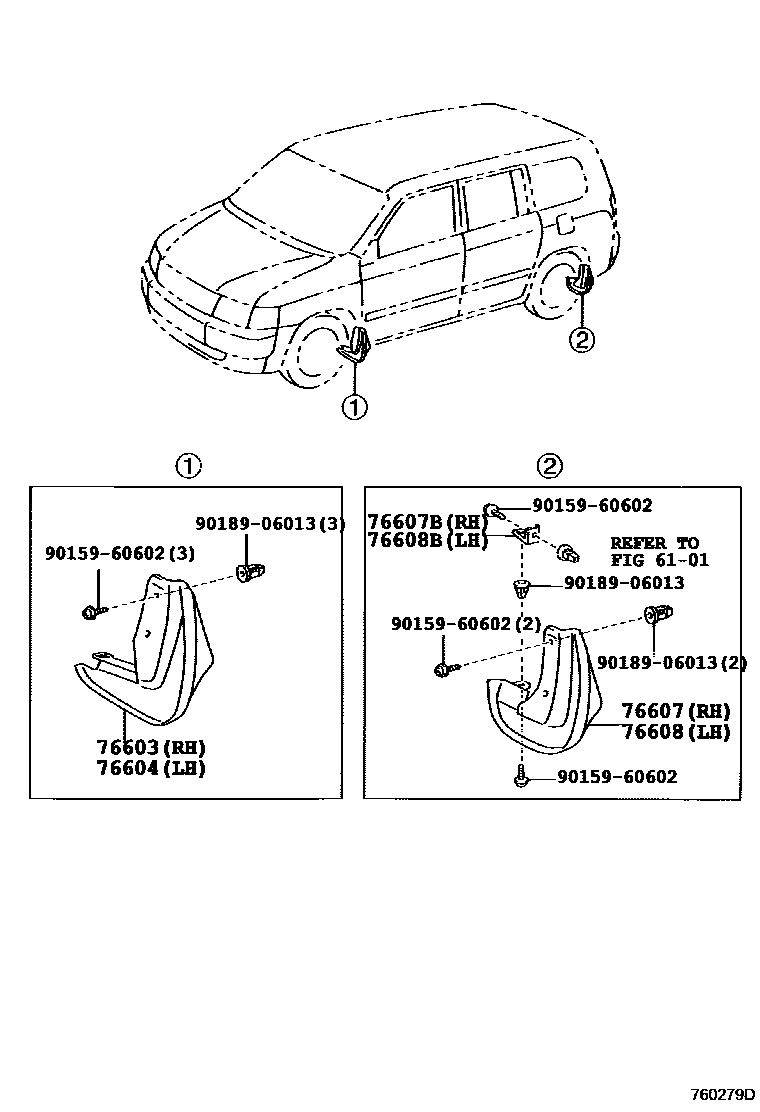

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-52050i200206

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-52050i200206

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-52080i200206

76607BBRACKET, QUARTER PANEL REAR MUDGUARD, RH

main76645-52010i200206

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-52080i200206

76608BBRACKET, QUARTER PANEL REAR MUDGUARD, LH

main76646-52010i200206

9015960602

main90159-60602

9018906013

main90189-06013

9 parts on this diagram · 1 diagram in section

MUDGUARD & SPOILER for Toyota PROBOX/SUCCEED

This section contains 9 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota PROBOX/SUCCEED. Key components include: SIDE MEMBER, MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH, BRACKET, QUARTER PANEL REAR MUDGUARD, RH.
