Toyota PROBOX/SUCCEED — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12364BROD, ENGINE MOVING CONTROL, NO.2
12365COVER, ENGINE MOVING CONTROL ROD
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
1701MANIFOLD
9010510444
main90105-10444
9010510469
main90105-10469
9010510494
main90105-10494
9010510550
main90105-10550
9010514178
main90105-14178
9011610230
main90116-10230
9011910866
main90119-10866
9011914139
main90119-14139
9012608037
main90126-08037
9017810028
main90178-10028
9017810029
main90178-10029
9017908256
main90179-08256
91552K1025
main91552-K1025
9167180820
main91671-80820
9167281025
main91672-81025
9415121041
main94151-21041

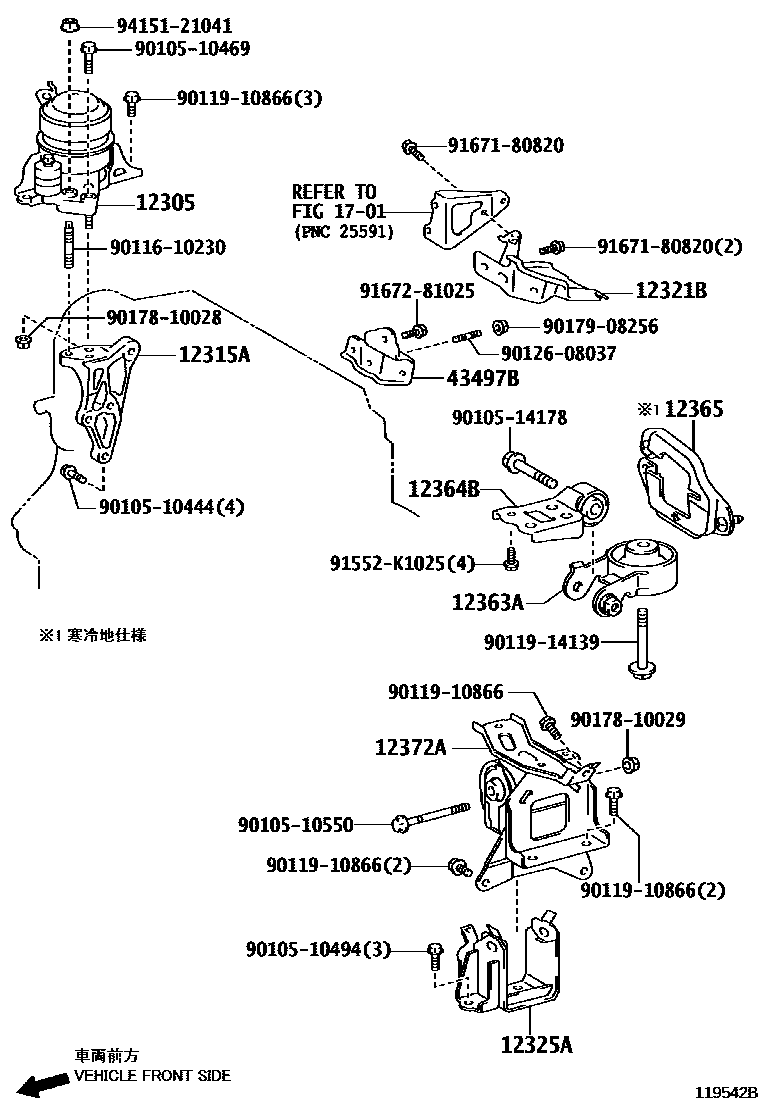

26 parts on this diagram · 4 diagrams in section
MOUNTING for Toyota PROBOX/SUCCEED
This section contains 32 genuine Toyota parts for the MOUNTING system of the Toyota PROBOX/SUCCEED. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT, BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), DAMPER, ENGINE MOUNTING.
