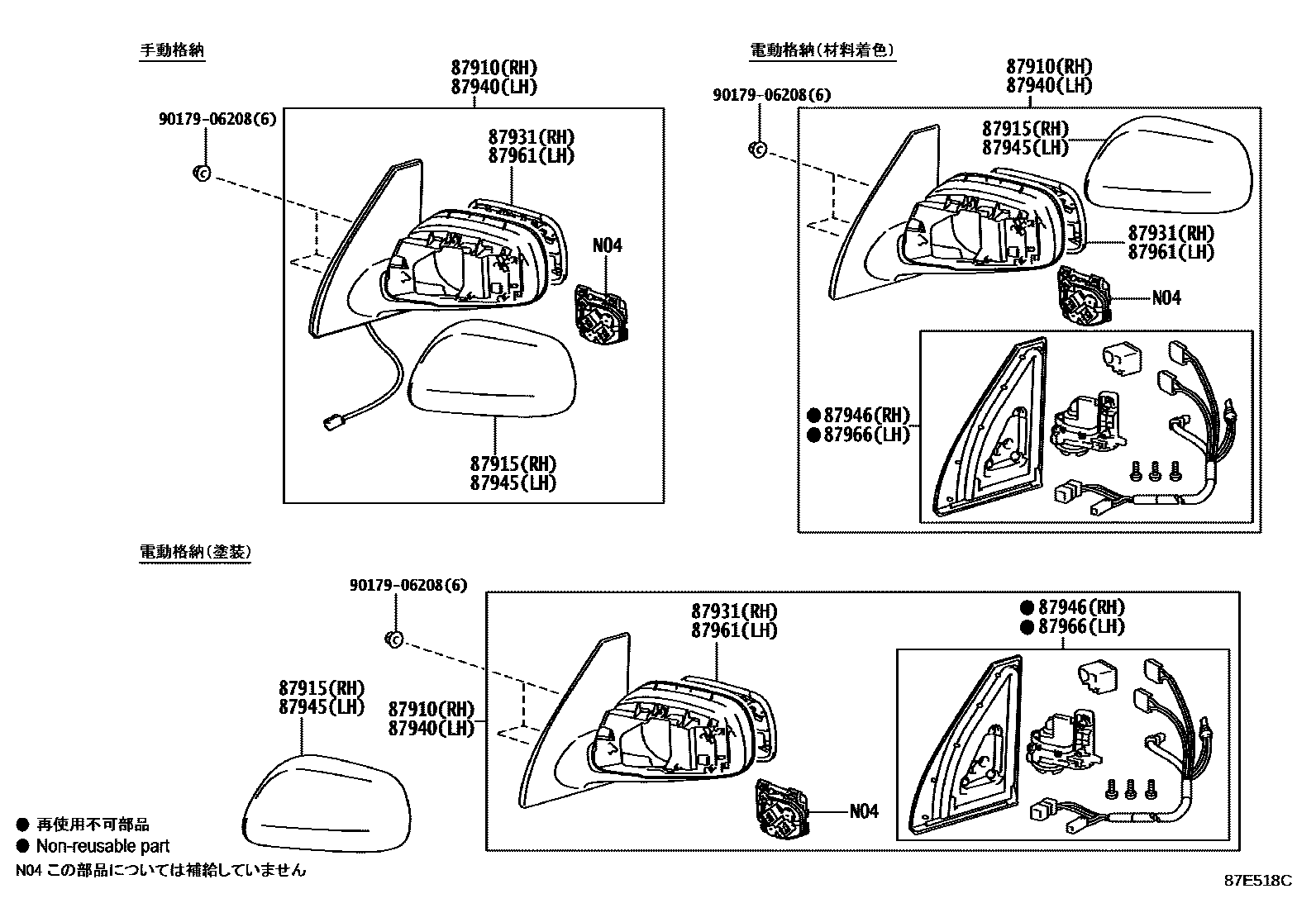

Toyota PROBOX/SUCCEED — MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE,058
BLACK MC.,209
LT.GREEN ME.,6U6
DK.BLUE M.M.,8P4
SILVER M.M.,1E7
BORDEAUX M.M,3R9
WHITE,058
SILVER M.M.,1E7
BLACK MC.,209
BORDEAUX M.M,3R9
LT.GREEN ME.,6U6
DK.BLUE M.M.,8P4
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE,058
BLACK MC.,209
LT.GREEN ME.,6U6
DK.BLUE M.M.,8P4
SILVER M.M.,1E7
BORDEAUX M.M,3R9
WHITE,058
SILVER M.M.,1E7
BLACK MC.,209
BORDEAUX M.M,3R9
LT.GREEN ME.,6U6
DK.BLUE M.M.,8P4
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906208
main90179-06208
9 parts on this diagram · 3 diagrams in section
MIRROR for Toyota PROBOX/SUCCEED
This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota PROBOX/SUCCEED. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
