Toyota PROBOX/SUCCEED — MIRROR

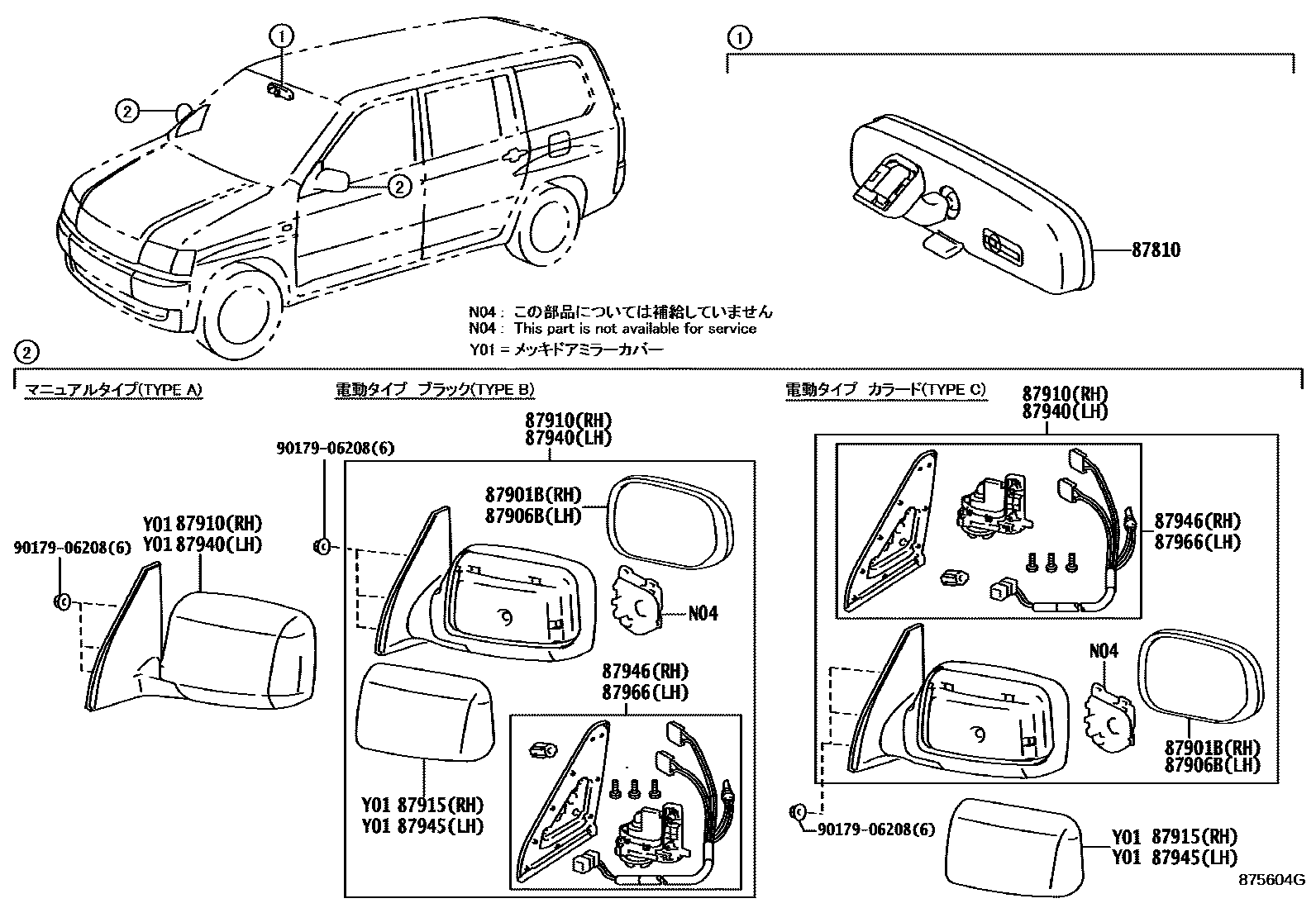

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-52040i200206-200612

main87810-52041i200701

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-52320i200206

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2A470i200206

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52310i200206

main87910-52320i200206

main87910-52330i200206-201006

main87910-52340i200206-201006

87915COVER, OUTER MIRROR, RH

main87915-12010-A4i201006-201409

main87915-12010-B1i201006-201409

main87915-12010-E4i201006-201409

main87915-12010-F3i201006-201409

main87915-12010-J0i201006-201409

main87915-12010-P1i201006-201409

main87915-52010i200206-201006

main87915-12010-C2i200206-201006

main87915-12010-C3i200206

main87915-12010-F4i200405

main87915-12010-G4i201006-201310

main87915-12010-H1i200206-201006

main87915-12010-X1i201006-201310

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52290i200206

main87940-52300i200206

main87940-52310i200206-201006

main87940-52320i200206-201006

87945COVER, OUTER MIRROR, LH

main87945-12010-A4i201006-201409

main87945-12010-B1i201006-201409

main87945-12010-E4i201006-201409

main87945-12010-F3i201006-201409

main87945-12010-J0i201006-201409

main87945-12010-P1i201006-201409

main87945-52010i200206-201006

main87945-12010-C2i200206-201310

main87945-12010-C3i200206

main87945-12010-F4i200405

main87945-12010-G4i200508-201006

main87945-12010-H1i201006-201310

main87945-12010-X0i201006-201310

87946RETRACTOR, OUTER MIRROR, RH

main87946-52330i200206

87966RETRACTOR, OUTER MIRROR, LH

main87966-52310i200206

9017906208

main90179-06208

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota PROBOX/SUCCEED

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota PROBOX/SUCCEED. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
