Toyota PROBOX/SUCCEED — METER

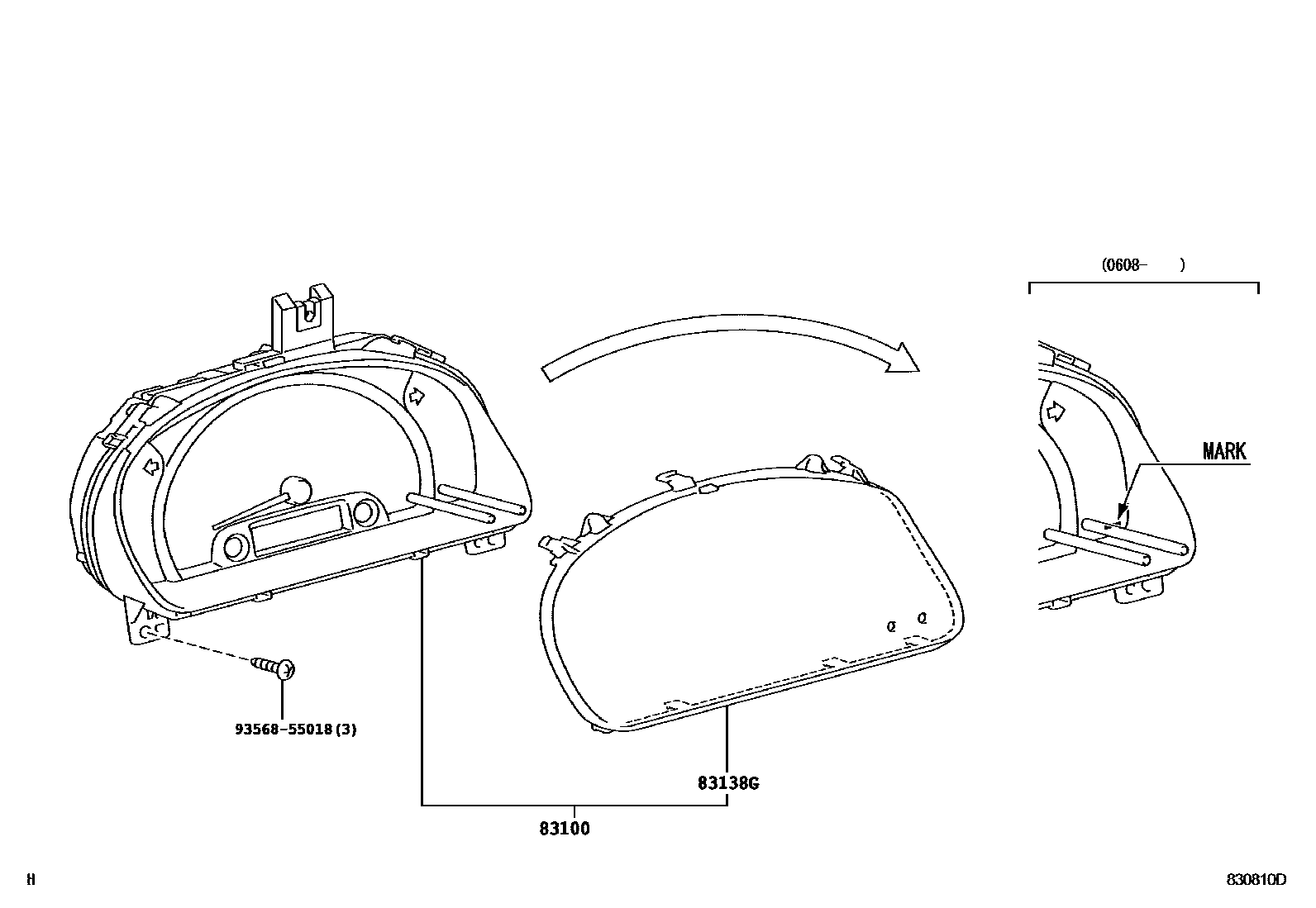

Parts diagram

83100METER ASSY, COMBINATION

main83800-52790i200206-200308

main83800-52791i200308-200507

main83800-52792i200508-200608

main83800-52793i200608-201006

main83800-52794i201006-201205

main83800-52810i200206-200308

main83800-52811i200308-200507

main83800-52812i200508-200608

main83800-52813i200608-201006

main83800-52814i201006-201205

main83800-5C650i200304-200308

main83800-5C651i200308-200507

main83800-5C652i200508-200608

main83800-5C653i200608-201006

main83800-5C654i201006-201205

main83800-5CJ50i201205

main83800-5CJ80i201205

main83800-5CJ90i201205

main83800-52780i200206-200308

main83800-52781i200308-200507

main83800-52782i200508-200608

main83800-52783i200608-201006

main83800-52800i200206-200308

main83800-52801i200308-200507

main83800-52802i200508-200608

main83800-52803i200608-201006

main83800-52804i201006-201205

main83800-52820supersedes 83800-52830i200206-200308

main83800-52821supersedes 83800-52833i200308-200507

main83800-52822supersedes 83800-52832i200508-200608

main83800-52823supersedes 83800-52833i200608-200708

main83800-5CJ70i201205

83138GGLASS, COMBINATION METER

main83852-52780i200206

9356855018

main93568-55018

3 parts on this diagram · 1 diagram in section

METER for Toyota PROBOX/SUCCEED

This section contains 3 genuine Toyota parts for the METER system of the Toyota PROBOX/SUCCEED. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
