Toyota PROBOX/SUCCEED — HEADLAMP

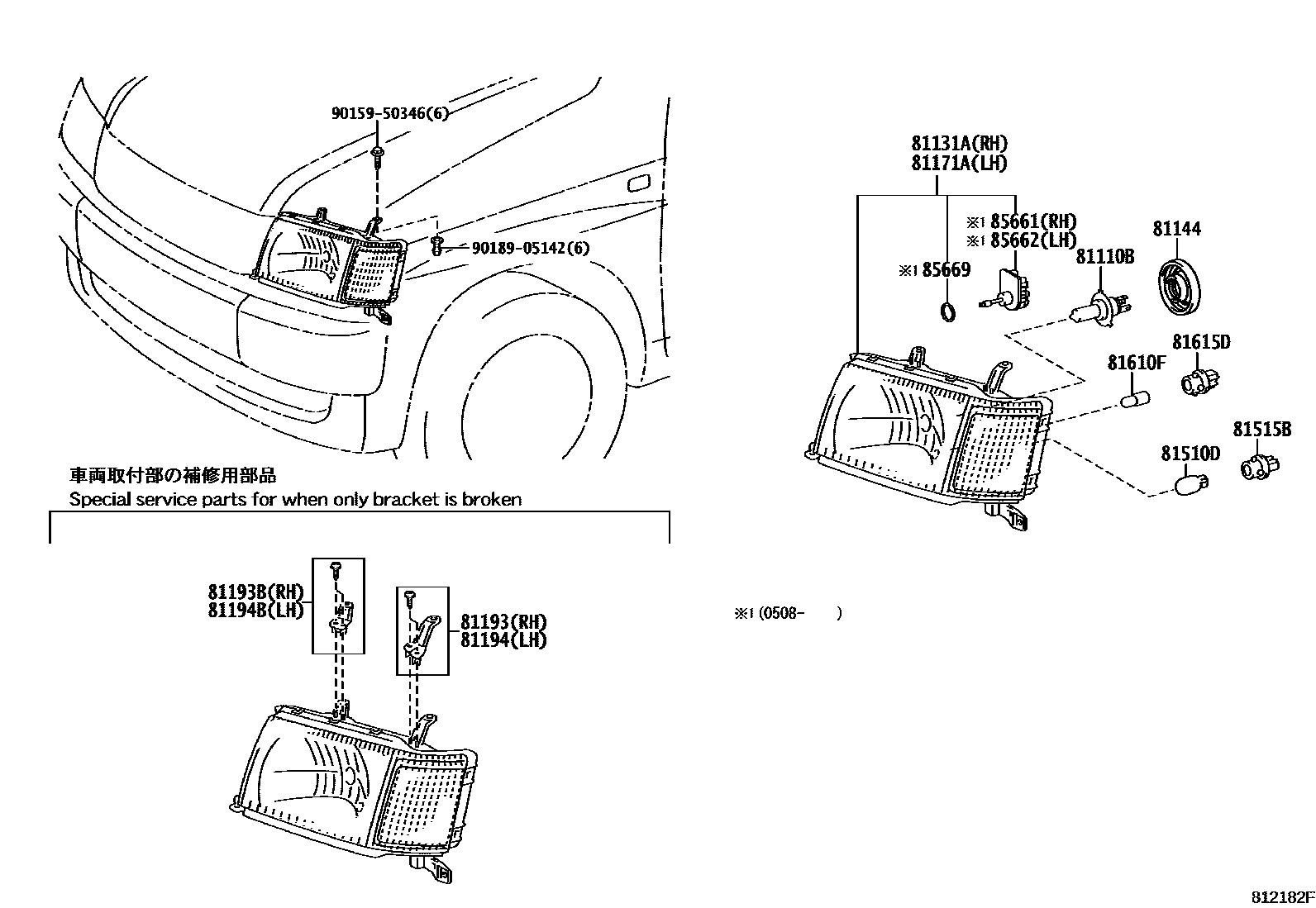

Parts diagram

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2i200206

81131AUNIT, HEADLAMP, RH

main81130-52240i200206-200508

main81130-52250i200206-200508

main81130-52710i200508

main81130-52720i200508

81144COVER, HEADLAMP, NO.1

main90075-65002×2i200206

81171AUNIT, HEADLAMP, LH

main81170-52240i200206-200508

main81170-52250i200206-200508

main81170-52700i200508

main81170-52710i200508

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52040i200206

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-52050i200206

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52040i200206

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-52050i200206

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200206

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2i200206

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200206

81615DSOCKET, CLEARANCE LAMP

main90075-60046×2i200508-200612

main90075-60077×2i200206-200508

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010i200508

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010i200508

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i200508

9015950346

main90159-50346

9018905142

main90189-05142

17 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota PROBOX/SUCCEED

This section contains 17 genuine Toyota parts for the HEADLAMP system of the Toyota PROBOX/SUCCEED. Key components include: BULB(FOR HEADLAMP, NO.1), UNIT, HEADLAMP, RH, COVER, HEADLAMP, NO.1, UNIT, HEADLAMP, LH, RETAINER, HEADLAMP PROTECTOR, UPPER RH.
