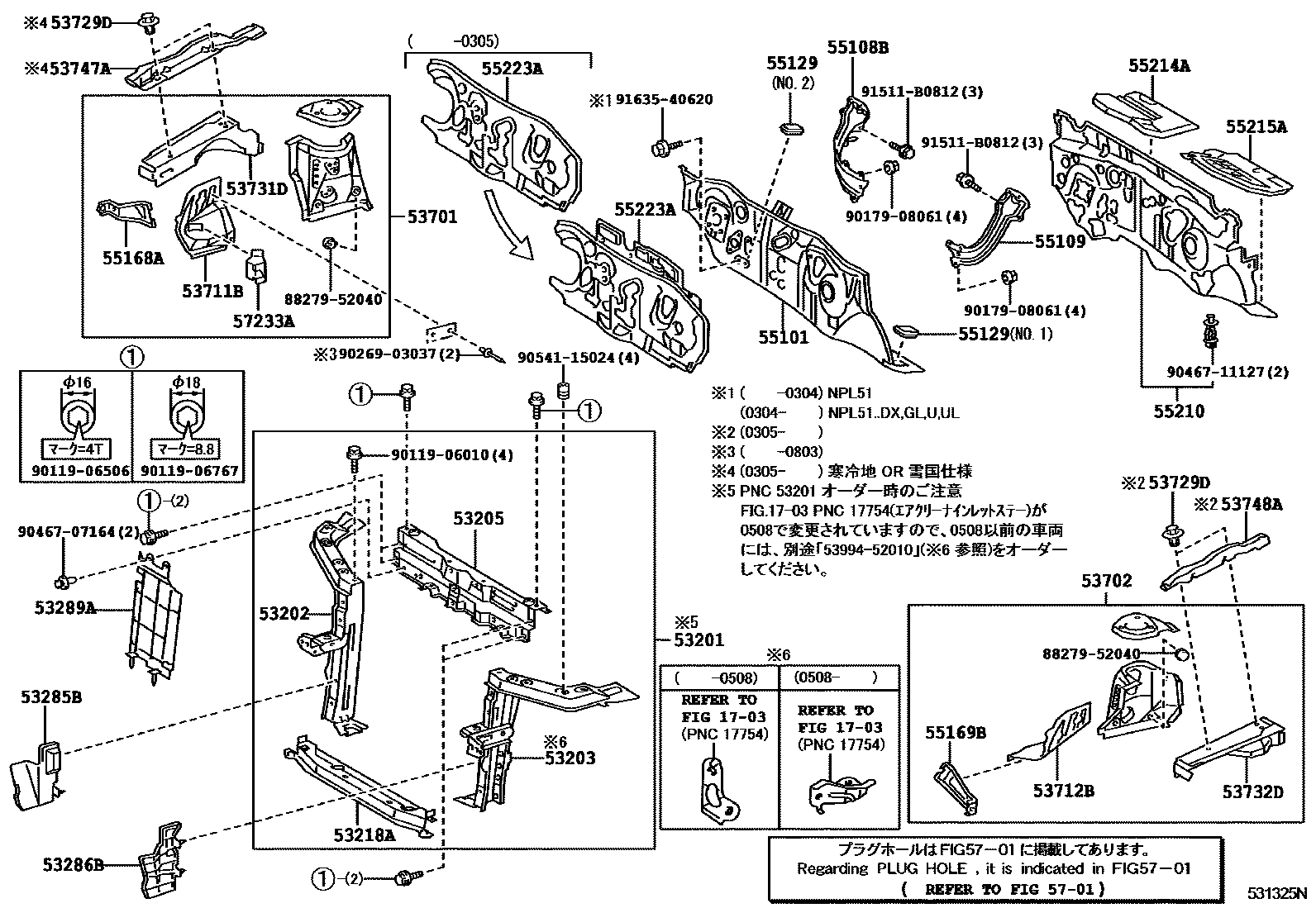

Toyota PROBOX/SUCCEED — FRONT FENDER APRON & DASH PANEL
1703AIR CLEANER
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53289ACOVER, RADIATOR SUPPORT OPENING
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53729DREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
55101PANEL SUB-ASSY, DASH
55108BBRACE SUB-ASSY, DASH TO FRAME, RH
55109BRACE SUB-ASSY, DASH TO FRAME, LH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
5701HOLE PLUG
57233ARETAINER, ENGINE FRONT SUPPORT, RH
8827952040GUIDE, SKID CONTROL SENSOR
main88279-52040
9011906010
main90119-06010
9011906506
main90119-06506
9011906767
main90119-06767
9017908061
main90179-08061
9026903037
main90269-03037
9046707164
main90467-07164
9046711127
main90467-11127
9054115024
main90541-15024
91511B0812
main91511-B0812
9163540620
main91635-40620
41 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota PROBOX/SUCCEED
This section contains 41 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota PROBOX/SUCCEED. Key components include: AIR CLEANER, SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER.
