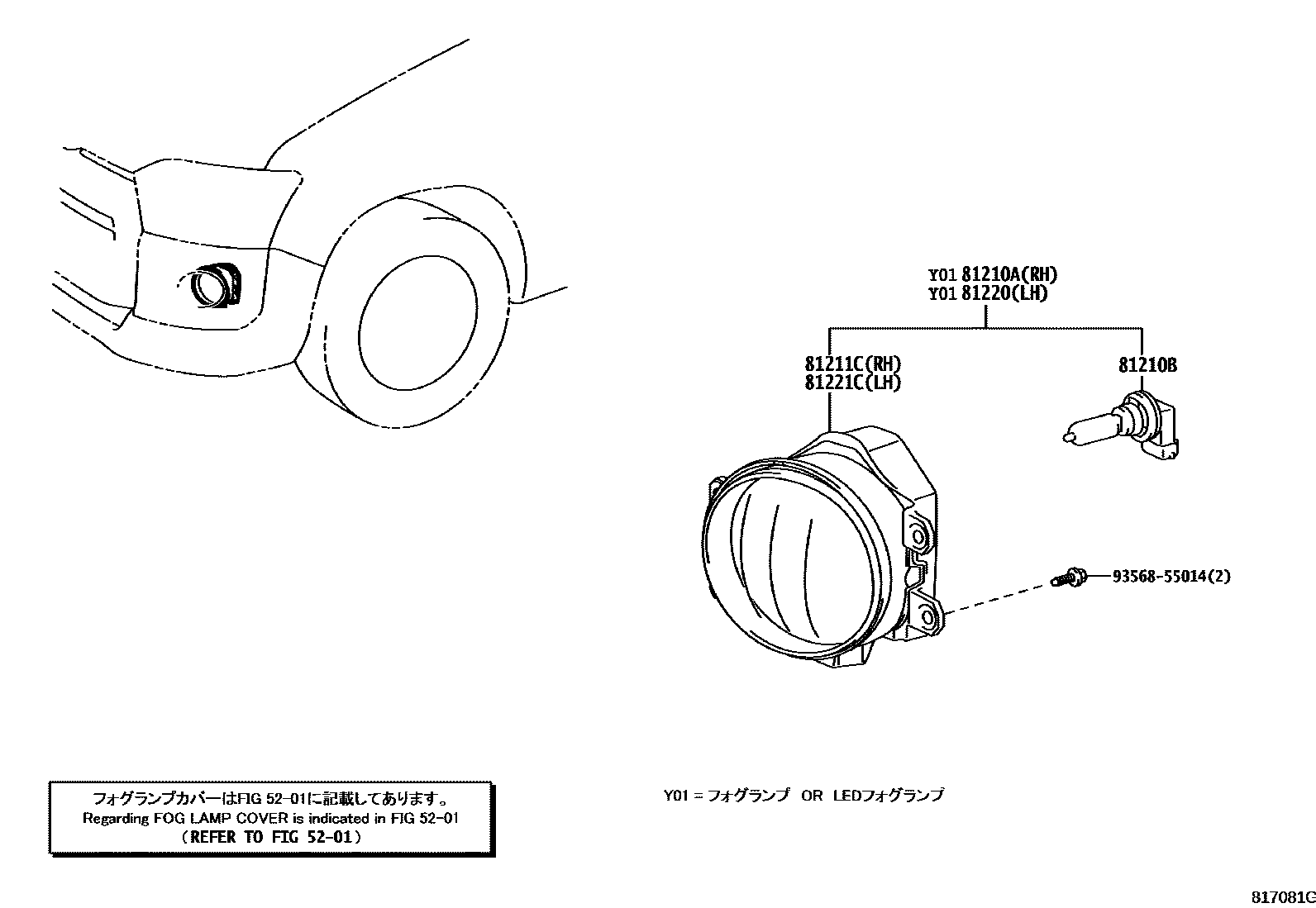

Toyota PROBOX/SUCCEED — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-47010i201409-202201

81210BBULB, FOG LAMP

main90981-13090×2i201409-202201

81211CLAMP UNIT, FOG LAMP, RH

main81211-47010i201409-202201

81220LAMP ASSY, FOG, LH

main81220-47010i201409-202201

81221CLAMP UNIT, FOG LAMP, LH

main81221-47010i201409-202201

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota PROBOX/SUCCEED

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota PROBOX/SUCCEED. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP ASSY, FOG, LH.
