Toyota PROBOX/SUCCEED — FOG LAMP

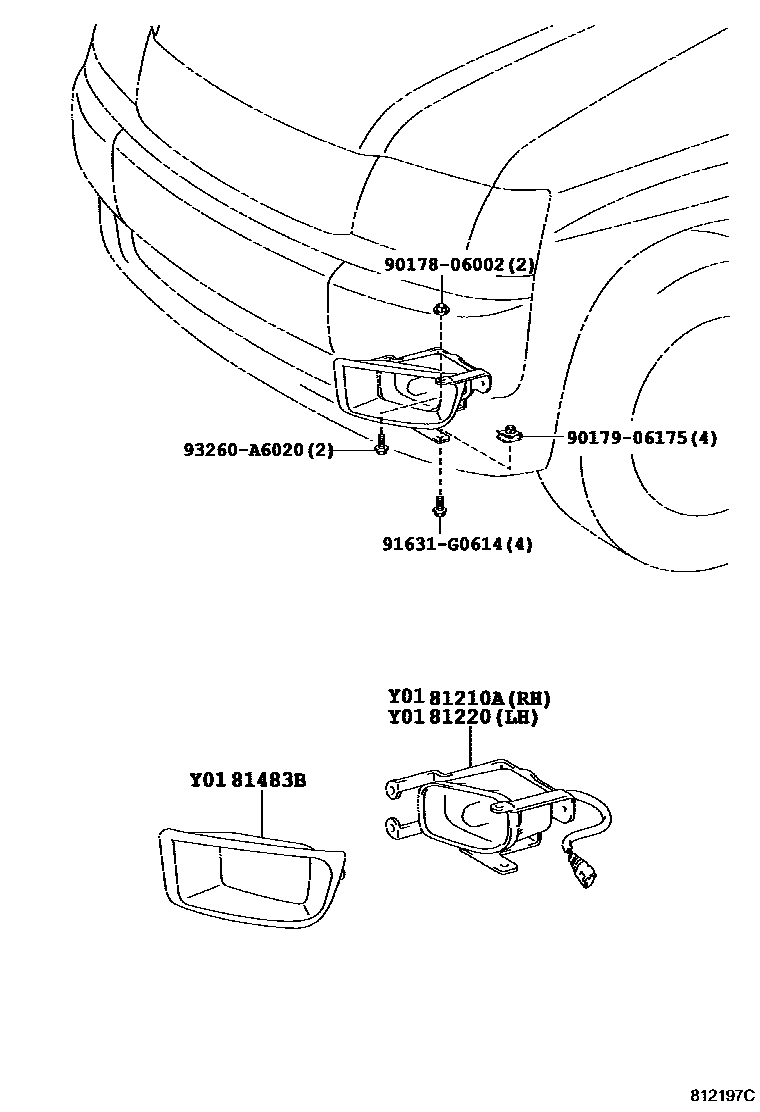

Parts diagram

81210ALAMP ASSY, FOG, RH

main81210-52080i200206-200508

main81210-52090i200206

main81481-52220i200508

81220LAMP ASSY, FOG, LH

main81220-52080i200206-200508

main81220-52090i200206

main81482-52170i200508

81483BPROTECTOR, FOG LAMP

main81483-52050i200206-200508

main81483-52090i200508

main81484-52010i200206-200508

main81484-52030i200508

9017806002

main90178-06002

9017906175

main90179-06175

91631G0614

main91631-G0614

93260A6020

main93260-A6020

7 parts on this diagram · 3 diagrams in section

FOG LAMP for Toyota PROBOX/SUCCEED

This section contains 11 genuine Toyota parts for the FOG LAMP system of the Toyota PROBOX/SUCCEED. Key components include: LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH, BRACKET, FOG LAMP, RH, BRACKET, FOG LAMP, LH.
