Toyota PROBOX/SUCCEED — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52040iNCP5#,NLP51200206-200305

sub53383-52041

main53383-52041iNCP5#,NLP51200305-200307

main53383-52042iNCP5#,NLP51200307

55701PANEL SUB-ASSY, COWL

main55700-52080iNLP51200206-200708

main55700-52130iNCP5#200206-201409

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52040iNCP5#,NLP51200206

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52040iNCP5#,NLP51200206

55713APANEL, COWL TOP SIDE, RH

main55713-52050iNCP5#,NLP51200206-201409

55714APANEL, COWL TOP SIDE, LH

main55714-52050iNCP5#,NLP51200206-201409

55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH

main55774-52010iNCP5#,NLP51200206

55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH

main55775-52010iNCP5#,NLP51200206

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-52100iNCP5#,NLP51200206-200305

sub55781-52101

main55781-52101iNCP5#,NLP51200305-200307

sub55781-52102

main55781-52102iNCP5#,NLP51200307

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-06133-C0iNCP5#,NLP51200206-201409

BLACK

sub90467-06133

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-52100iNCP5#,NLP51200206-200305

sub55782-52101

main55782-52101iNCP5#,NLP51200305-200307

sub55782-52102

main55782-52102iNCP5#,NLP51200307

55879BSEAL, COWL VENT

main55879-52010iNCP5#,NLP51200307

56111GLASS, WINDSHIELD

main56101-52130iNCP5#,NLP51200206

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP5#,NLP51200206

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP5#,NLP51200206

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52010iNCP5#,NLP51200206

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iNCP5#,NLP51200206

sub56117-74010

5578852040CLIP, COWL VENTILATOR LOUVER, OUTER

main55788-52040

9011906786

main90119-06786

9017906171

main90179-06171

9046708108

main90467-08108

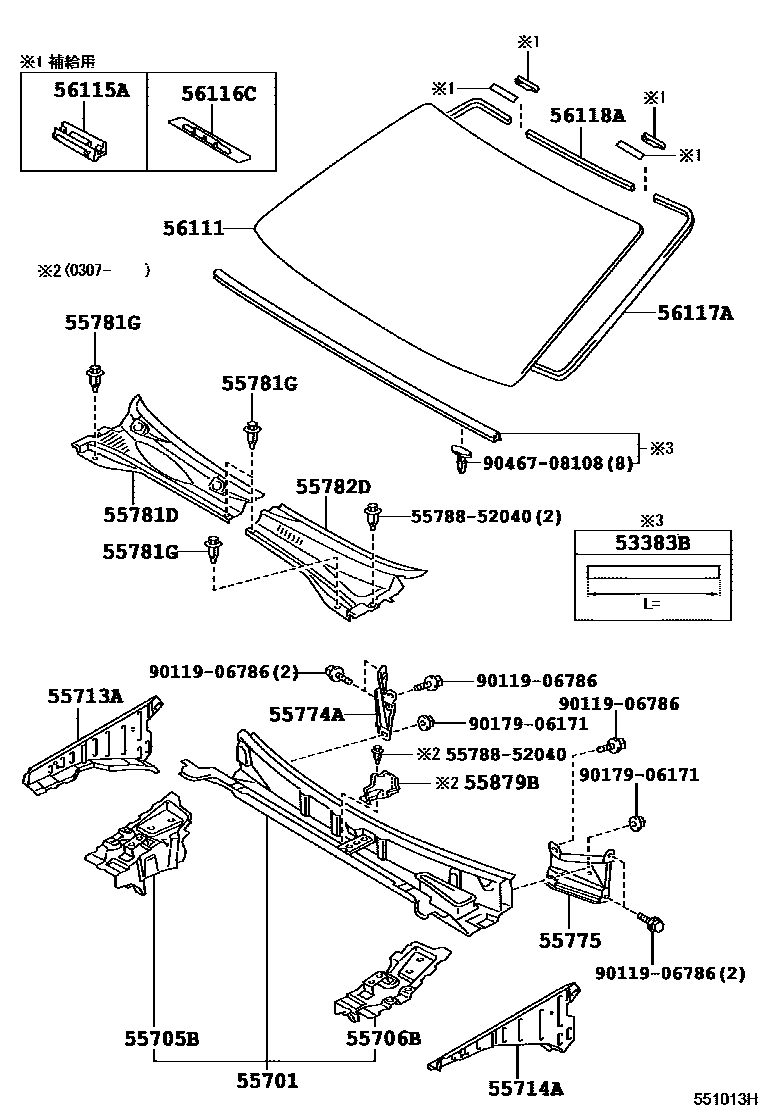

21 parts on this diagram · 1 diagram in section
