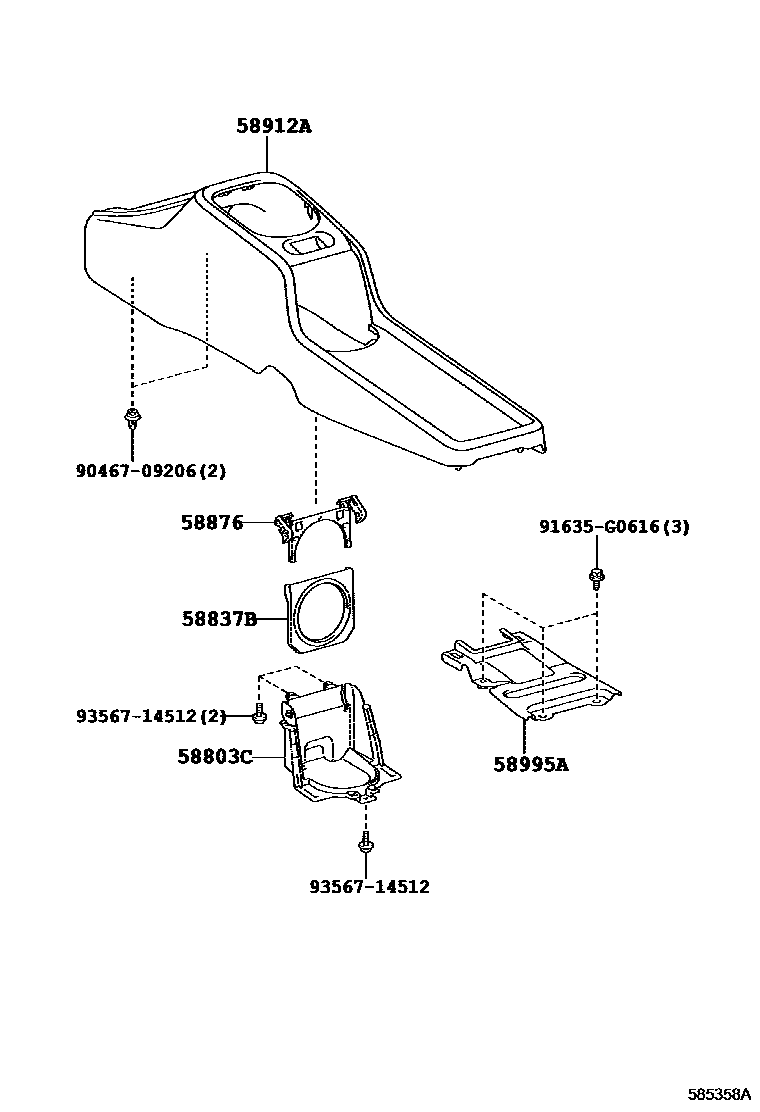

Toyota PROBOX/SUCCEED — CONSOLE BOX & BRACKET

0001 1 0002 1

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-52010-C0iNCP16#,NSP160201409

BLACK,TRIM1#

main58803-52020-C0iNHP160201812

BLACK,TRIM1#

58837BBOX, CONSOLE CUP HOLDER

main58837-52050-C0iNCP16#,NHP160,NSP160201409

BLACK,TRIM1#

58876ARM, CONSOLE UPPER PANEL

main58876-52010-C0iNCP16#,NHP160,NSP160201409

BLACK,TRIM1#

58912ABOX, REAR CONSOLE

main58911-52230-C0iNCP16#,NSP160201409

BLACK,TRIM1#

main58911-52260-C0iNHP160201812

BLACK,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-52100iNCP16#..SUCD201409-202007

9046709206

main90467-09206

91635G0616

main91635-G0616

9356714512

main93567-14512

8 parts on this diagram · 2 diagrams in section
