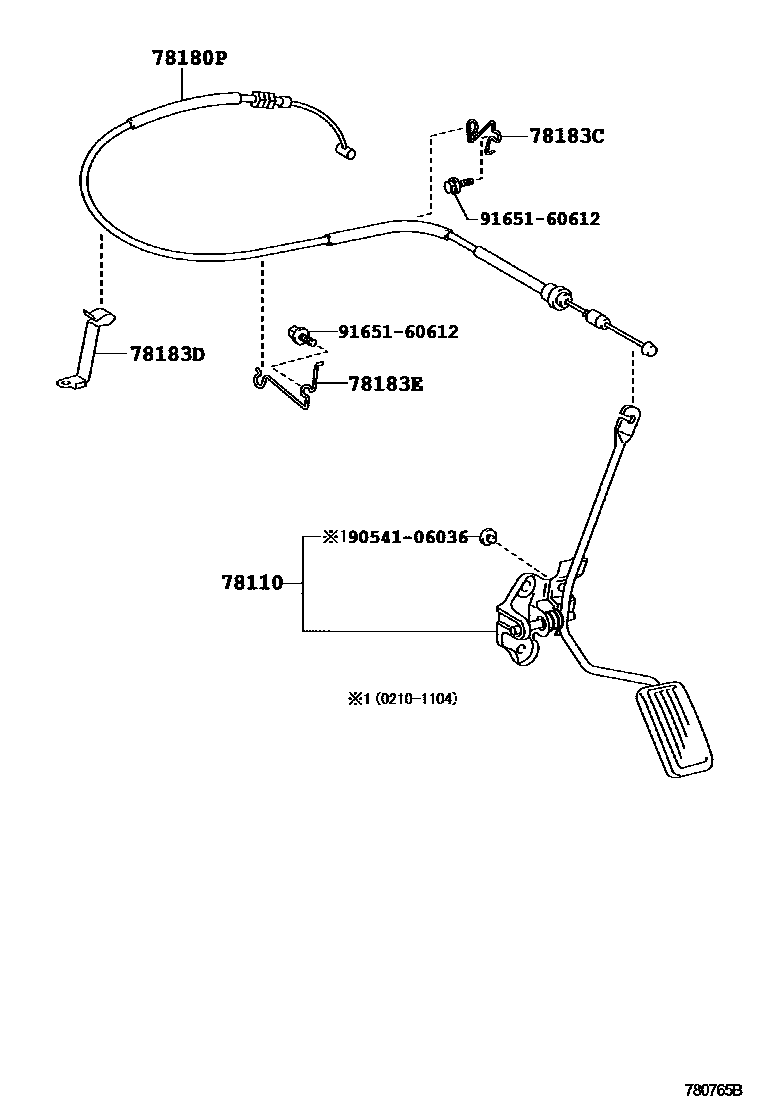

Toyota PROBOX/SUCCEED — ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-52050iNCP5#200206-200403

main78120-52110iNCP5#200403-201103

main78120-52130iNCP5#201104

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-52030iNCP5#200206-200912

main78180-52140iNCP5#201001

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52080iNCP5#200206

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-52120iNCP5#200206

78183ECLAMP, ACCELERATOR CONTROL CABLE

main78183-52160iNCP5#200206

9054106036

main90541-06036

9165160612

main91651-60612

7 parts on this diagram · 2 diagrams in section
