Toyota PROBOX/SUCCEED — ABS & VSC

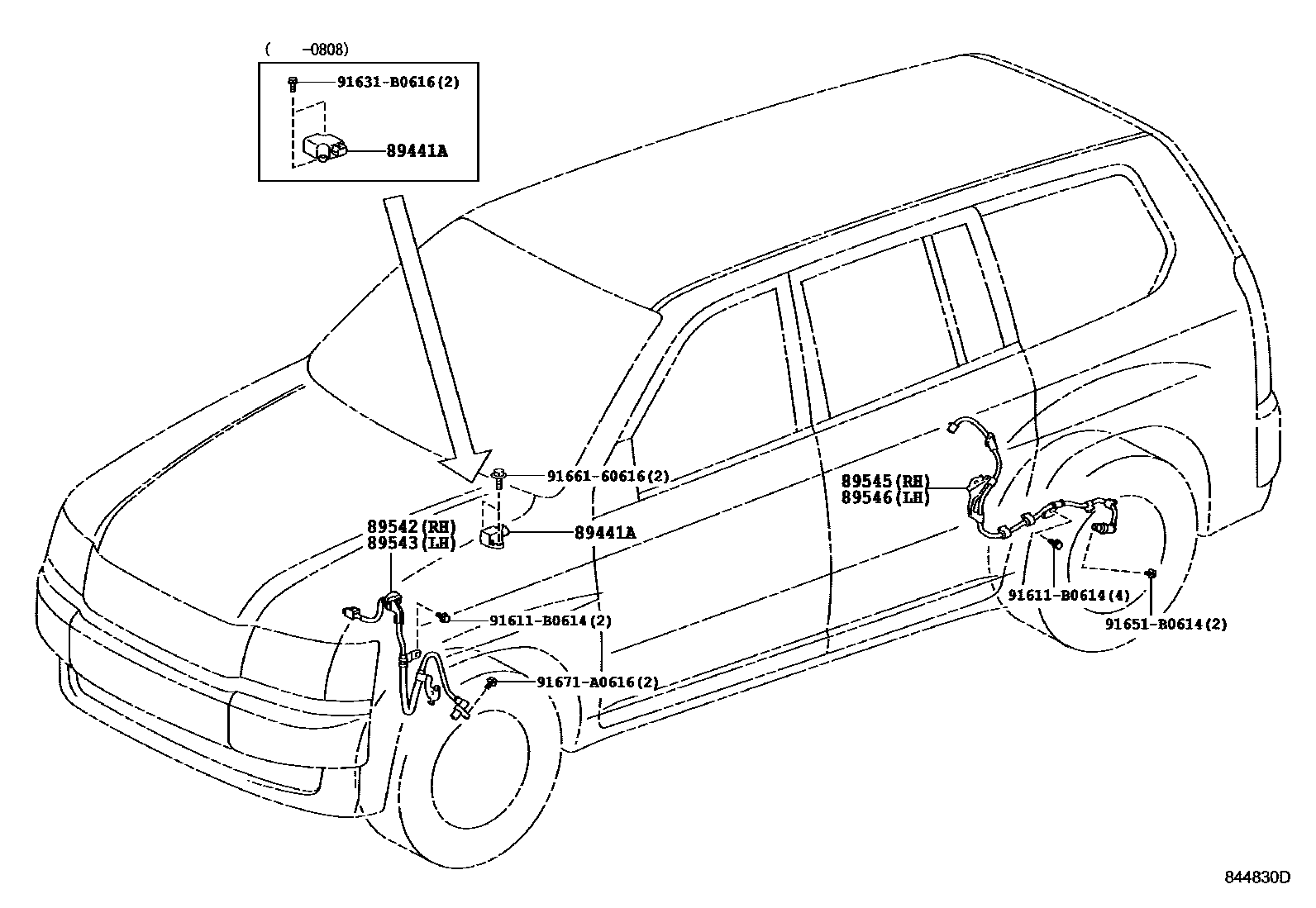

Parts diagram

89441ASENSOR, DECELERATION

main89441-52010i200206-200808

main89441-60010i200808-201005

main89441-60030i201006

89542SENSOR, SPEED, FRONT RH

main89542-52010i200206-201409

89543SENSOR, SPEED, FRONT LH

main89543-52010i200206-201409

89545SENSOR, SPEED, REAR RH

main89545-52020i200206-201409

89546SENSOR, SPEED, REAR LH

main89546-52020i200206-201409

91611B0614

main91611-B0614

91631B0616

main91631-B0616

91651B0614

main91651-B0614

9166160616

main91661-60616

91671A0616

main91671-A0616

10 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota PROBOX/SUCCEED

This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota PROBOX/SUCCEED. Key components include: SENSOR, DECELERATION, WIRE, SKID CONTROL SENSOR, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SKID CONTROL.
