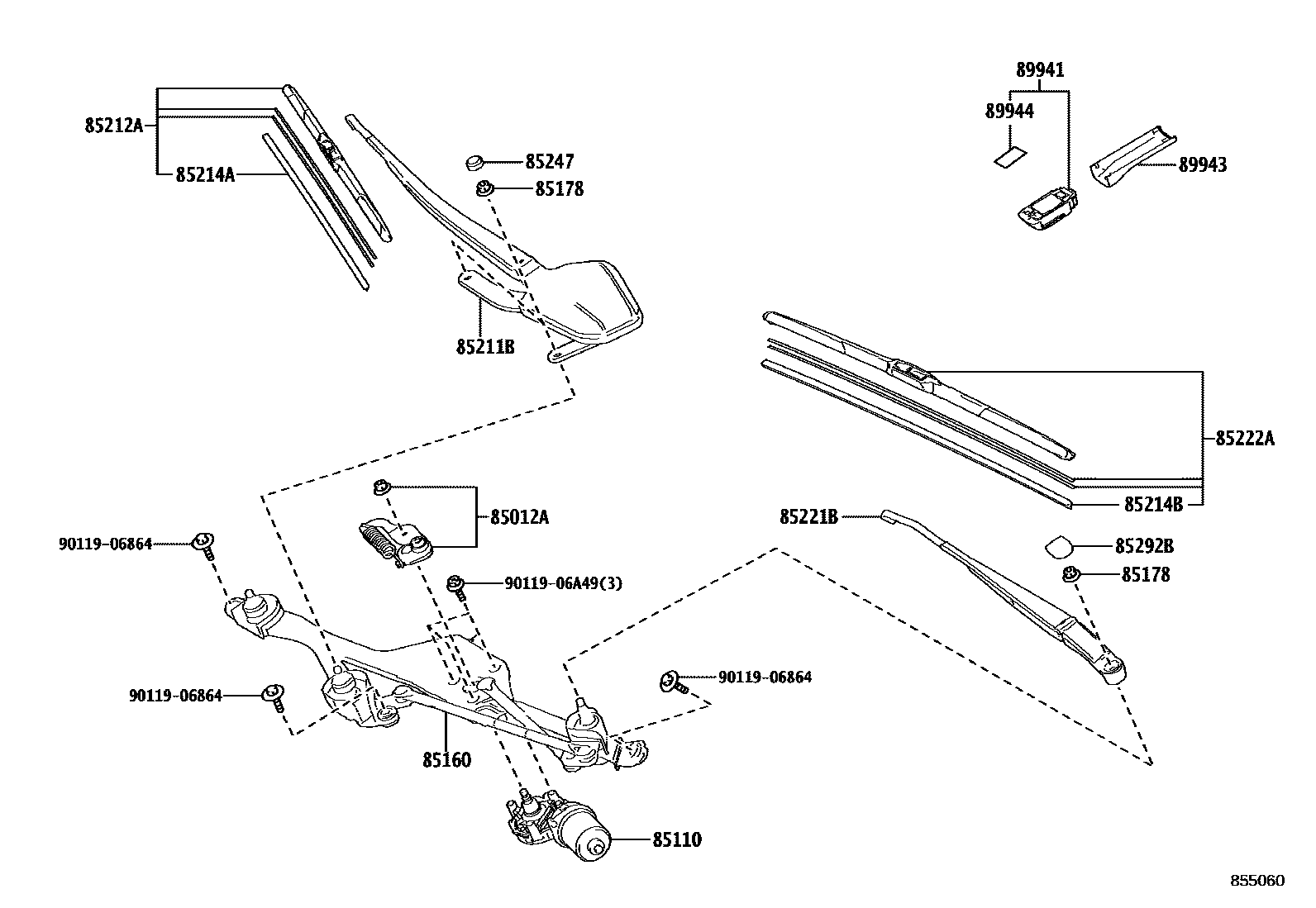

Toyota PRIUS — WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iMXWH6#202212

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C90iMXWH6#202212

85160LINK ASSY, WINDSHIELD WIPER

main85150-47240iMXWH6#202212

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iMXWH60,61..E,G202212

KOREA SPEC&COLD AREA SPEC(USA)

85211BARM, FRONT WIPER, RH

main85211-47250iMXWH6#202212

85212ABLADE, FR WIPER, RH

main85212-33260iMXWH6#202212

85214ARUBBER, WIPER, RH

main85214-33180iMXWH6#202212

85214BRUBBER, WIPER, LH

main85214-28080iMXWH6#202212

85221BARM, FRONT WIPER, LH

main85221-47210iMXWH6#202212

85222ABLADE, FR WIPER, LH

main85222-12A90iMXWH6#202212

85247CAP, SHIELD

main85292-47030iMXWH6#202212

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iMXWH6#202212

KOREA SPEC&COLD AREA SPEC(USA)

89941SENSOR, RAIN

main89941-78010iMXWH61202303

main89941-78020iMXWH60,65..G,H202212

89943COVER, RAIN SENSOR

main89943-47040iMXWH61;MXWH60,65..G,H202212

89944TAPE, RAIN SENSOR

main89944-42020iMXWH61;MXWH60,65..G,H202212

9011906864

main90119-06864

9011906A49

main90119-06A49

17 parts on this diagram · 2 diagrams in section
